List of Equipments

ALL
INLAND TUG
DECK LOADER BARGE
CARGO VESSEL PARTICULAR
OTHERS

SL. NO.	NAME OF EQUIPMENT	CAPACITY	YOB	DECK STRENGTH	CATEGORY & DIMENSION OF EQUIPMENT	View detail
AA	TUG
01.	M.T. “LIGHT – 1”	1800 BHP	2008	N/A	INLAND TUG (2 ENGINES)	Detail
02.	M.T. “LIGHT – 3”	500 BHP	2004	N/A	INLAND TUG (2 ENGINE)	Detail
03.	M.T. “LIGHT – 4”	640 BHP	2005	N/A	INLAND TUG (2 ENGINE)	Detail
04.	M.T. “LIGHT – 5”	500 BHP	1991	N/A	INLAND TUG (2 ENGINE)	Detail
05.	M.T. “LIGHT – 7”	180 BHP	2005	N/A	INLAND TUG (1 ENGINE)	Detail
06.	M.T. “LIGHT – 8”	250 BHP	2008	N/A	INLAND TUG (1 ENGINE)	Detail
07.	M.T. “LIGHT – 9”	500 BHP	2008	N/A	INLAND TUG (2 ENGINE)	Detail
08.	M.T. “LIGHT – 11”	550 BHP	2000	N/A	INLAND TUG (2 ENGINE)	Detail
09.	M.T. “LIGHT – 12”	1800 BHP	2018	N/A	INLAND TUG (2 ENGINE)	Detail

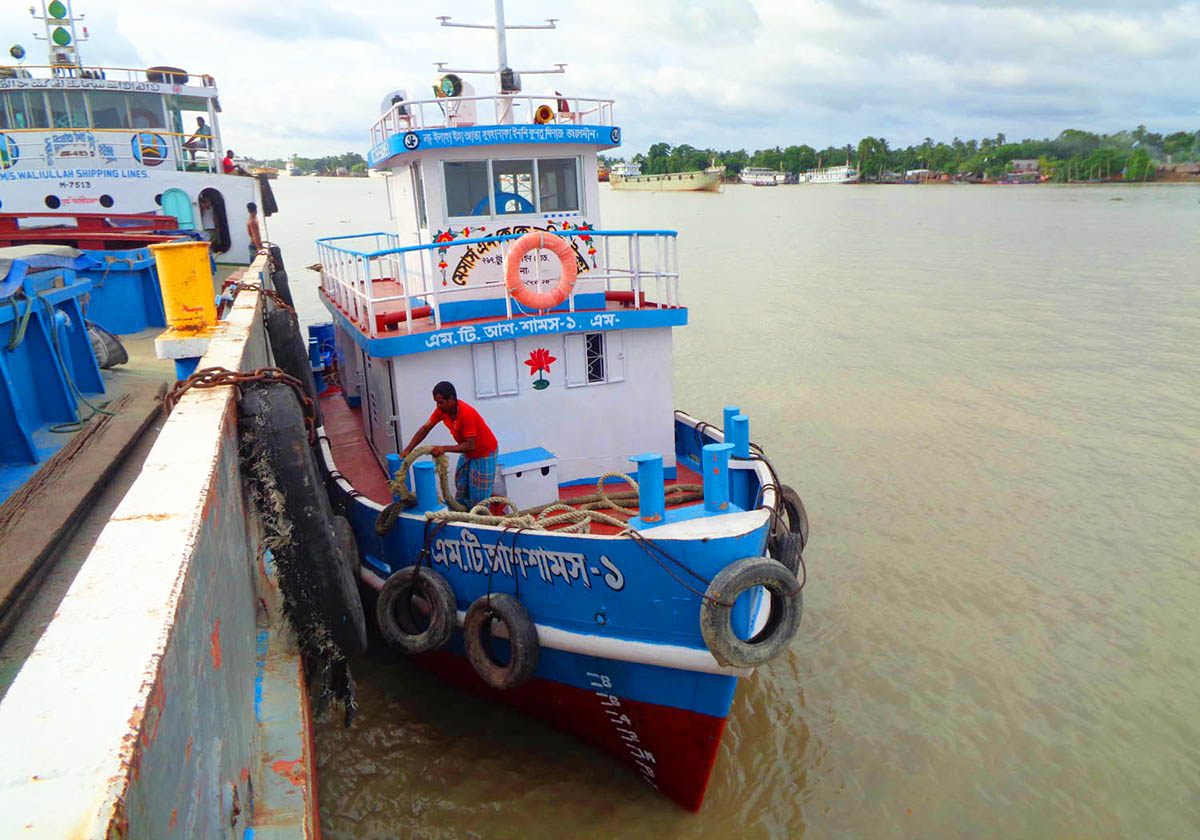

10.	M.T. “ASH - SHAMS - 1”	250 HP	2018	N/A	INLAND TUG (1 ENGINE)	Detail

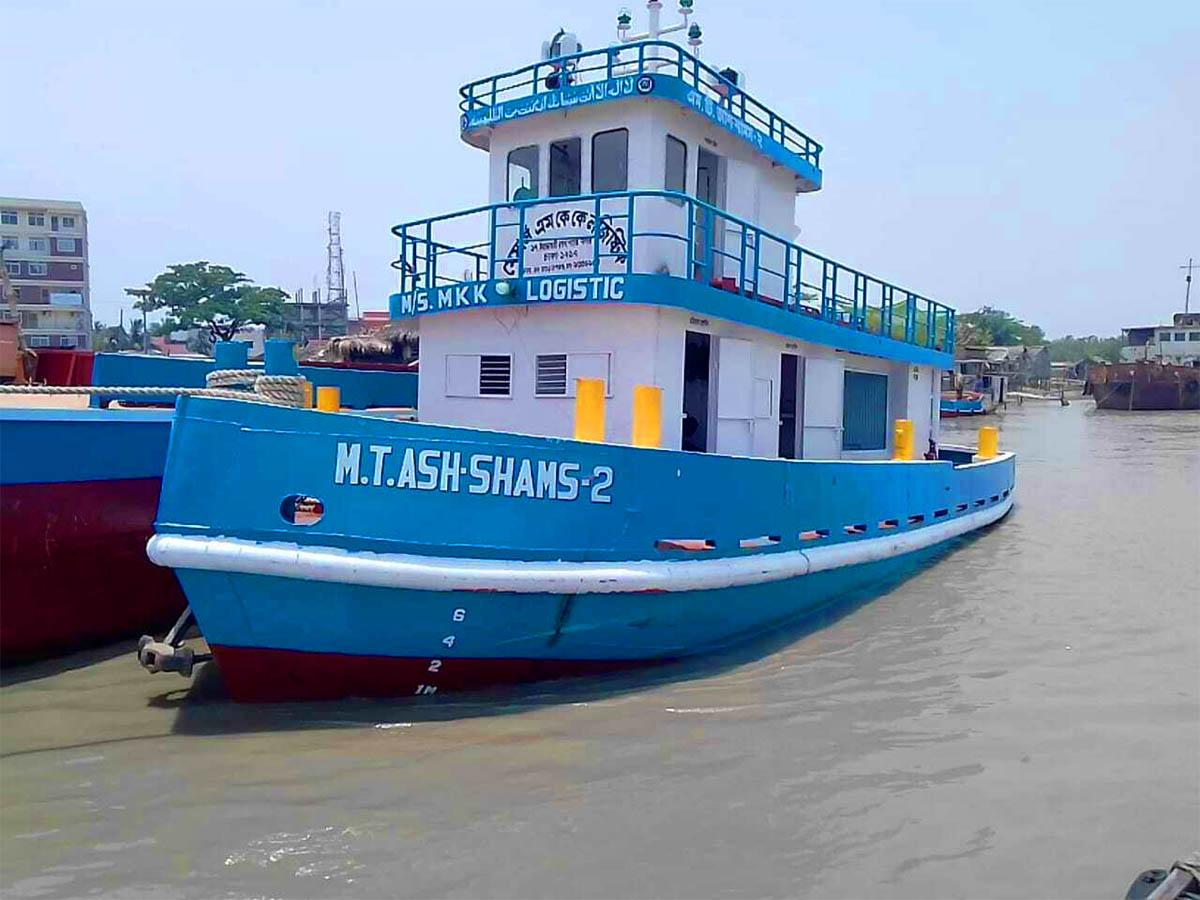

11.	M.T. “ASH - SHAMS - 2”	250 HP	2019	N/A	INLAND TUG (2 ENGINE)	Detail
BB	DECK LOADER BARGE

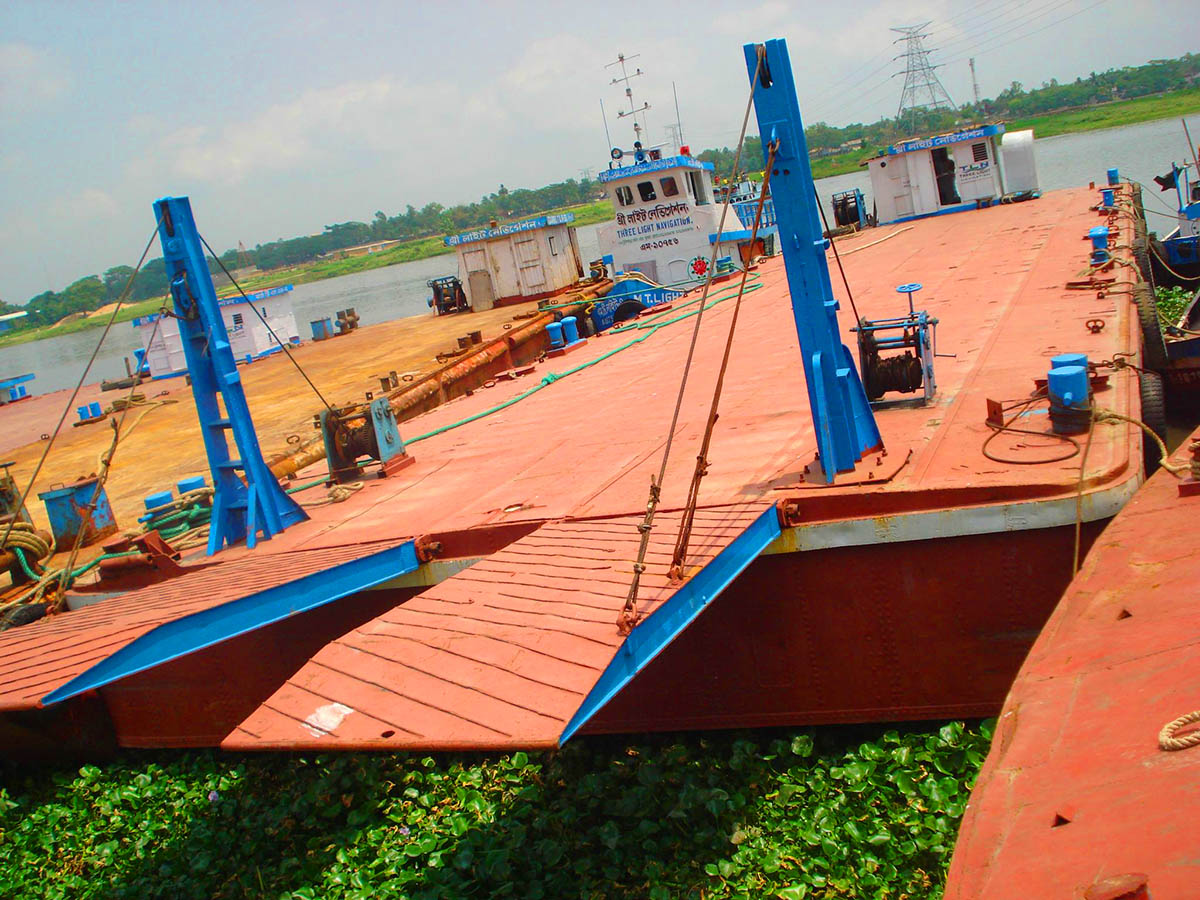

12.	BARGE “TLN – 2”	500 MT	2001	5.22 Ts/m2	105’ X 30’ X 9’	Detail

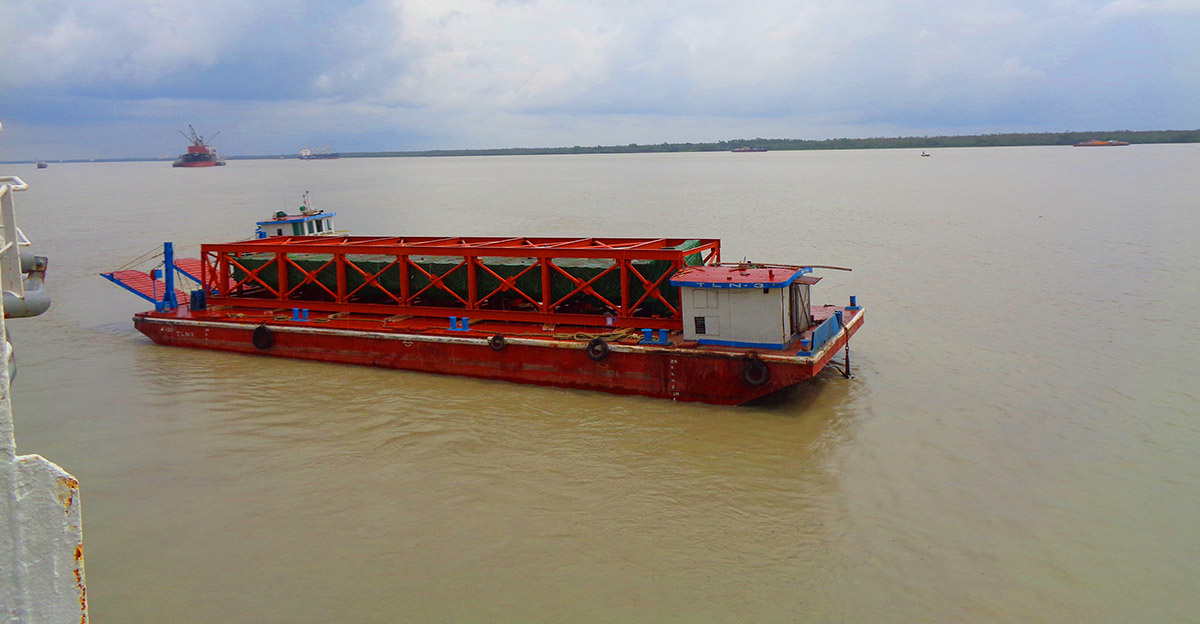

13.	BARGE “TLN – 3”	430 MT	1980	5.22 Ts/m2	101’ X 30’ X 8’	Detail
14.	BARGE “TLN – 4”	270 MT	2002	4.40 Ts/m2	105’ X 28’ X 5.5’	Detail
15.	BARGE “TLN – 5”	300 MT	2001	Light Cargo	130’ X 30’ X 5.6’	Detail
16.	BARGE M.V. “TLN–6”	650 MT	2016	12.39 Ts/m2	165’ X 30’ X 8’ (SELF PROPELLED/ 700 HP)	Detail

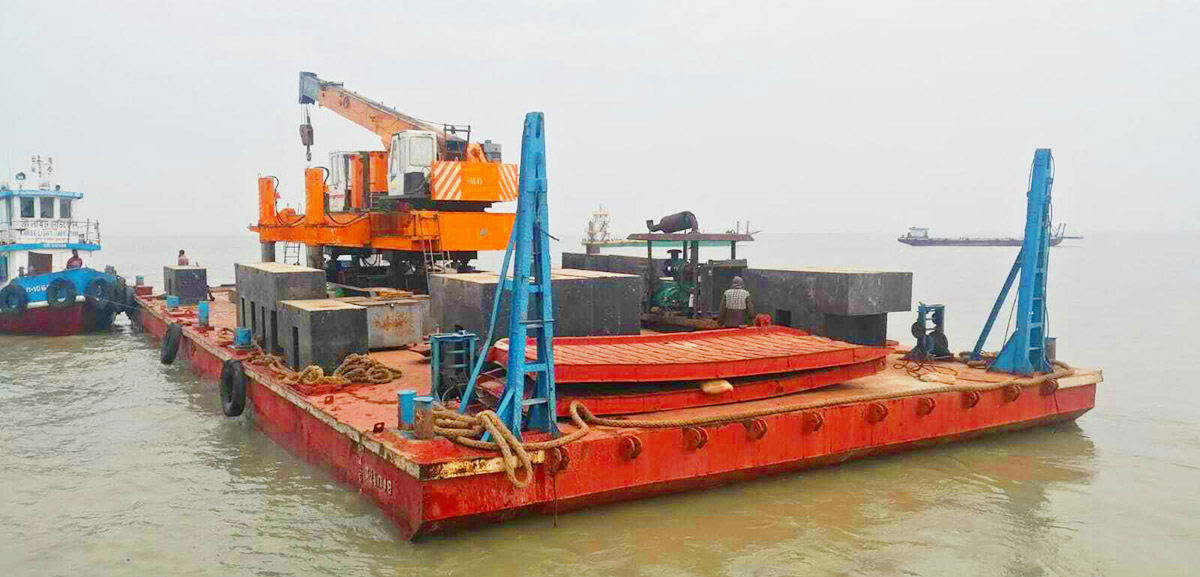

17.	BARGE “TLN – 7”	450 MT	2007	7.81 Ts/m2	98’ X 40’ X 7.6’	Detail
18.	BARGE “TLN – 8”	250 MT	2006	Light Cargo	112’ X 24’ X 6.5’(SELF PROPELLED/ 250 HP)
19.	BARGE “TLN – 11”	350 MT	2005	6.78 Ts/m2	106’ X 32’ X 6.5’	Detail
20.	BARGE “TLN – 19”	350 MT	2005	6.78 Ts/m2	119’ X 30.3’ X 5.9’+18’ X 2=36’ RAMP	Detail
21.	BARGE “TLN – 20”	900 MT	2005	5.25 Ts/m2	112’ X 52’ X 9.5’+18’ X 2=36’ RAMP	Detail
22.	BARGE “TLN – 23”	800 MT	2011	13.79 Ts/m2	150’ X 40’ X 8’	Detail
23.	BARGE “TLN – 24”	650 MT	2014	4.21 Ts/m2	150’ X 35’ X 7’	Detail
24.	BARGE “TLN – 25”	1800 MT	2010	13.79 Ts/m2	202’ X 45’ X 11’	Detail

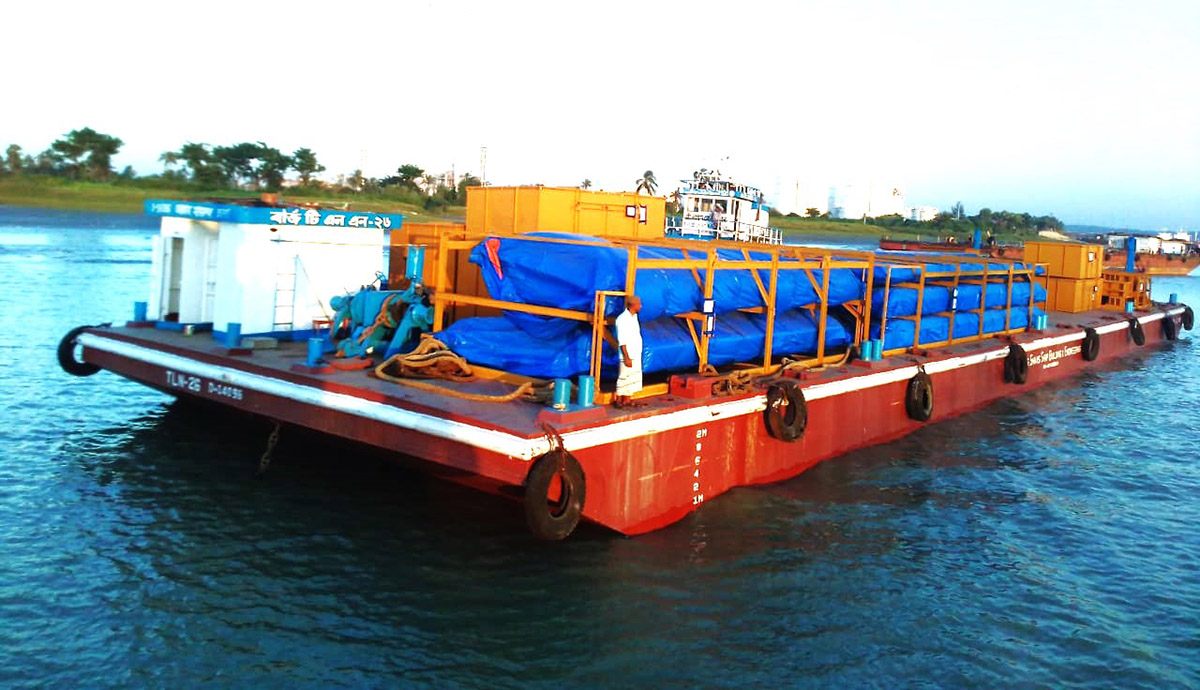

25.	BARGE “TLN – 26”	800 MT	2014	13.79 Ts/m2	150’ X 40’ X 8’	Detail

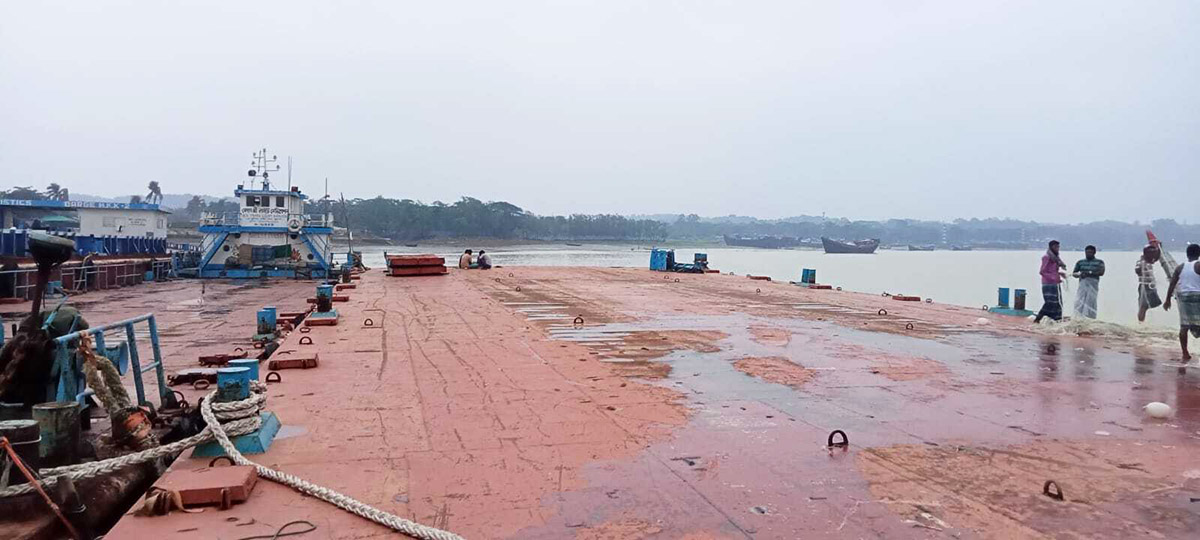

26.	BARGE “TLN – 28”	1250 MT	2015	14.00 Ts/m2	150’ X 50’ X 10’	Detail

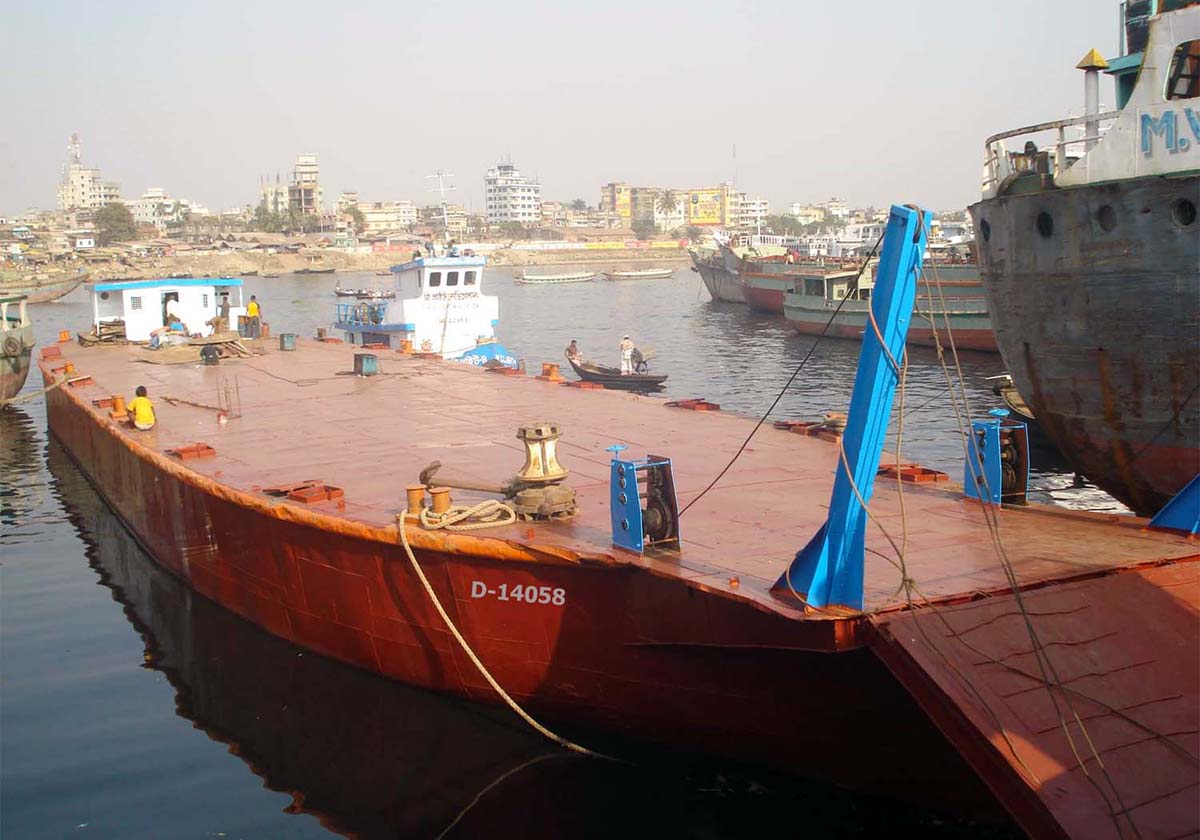

27.	BARGE “TLN – 29”	700 MT	2008	4.20 Ts/m2	170’ X 34’ X 8’	Detail

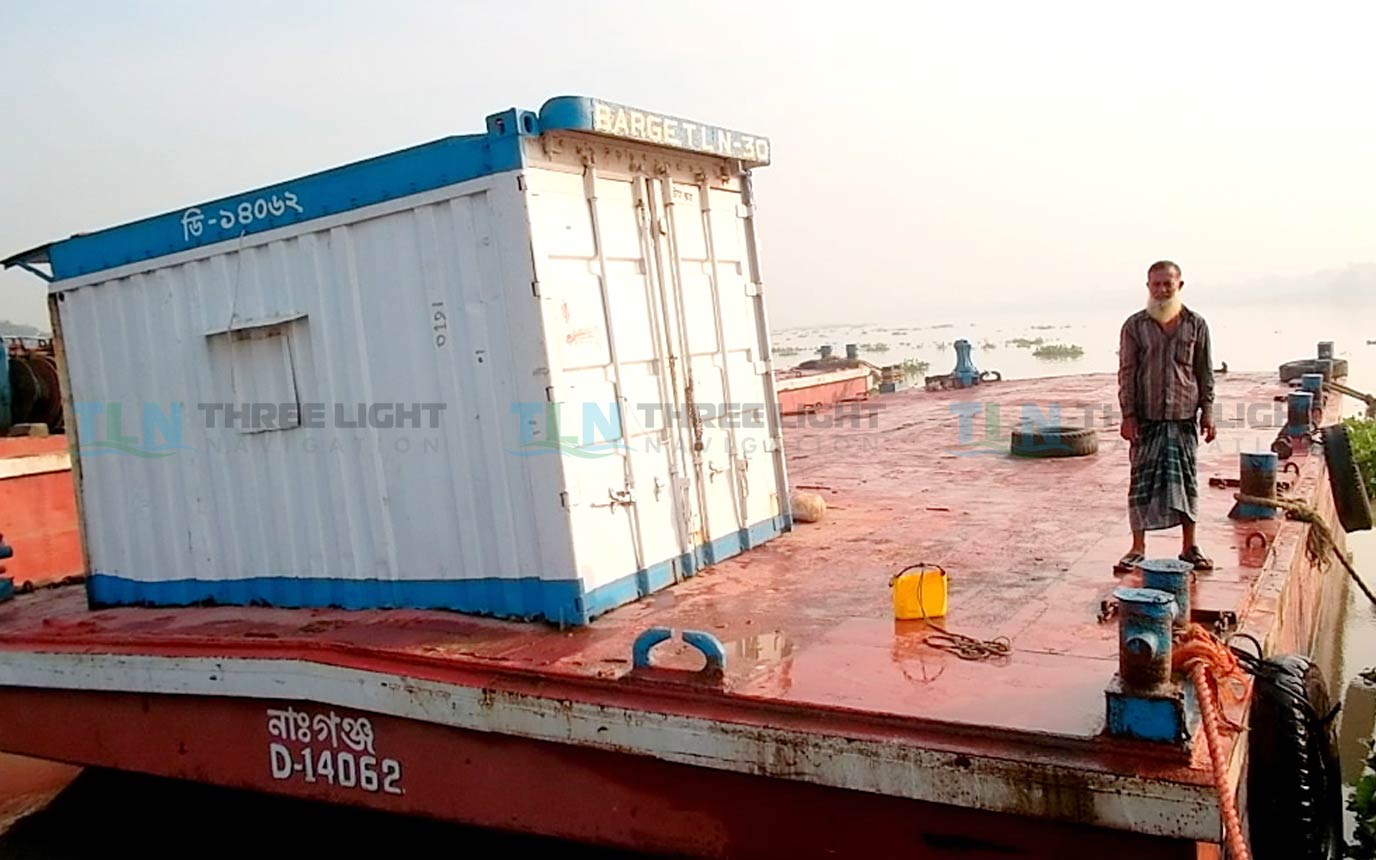

28.	BARGE “TLN – 30”	150 MT	2009	Light Cargo	60’ X 25’ X 6’ (Anchor Boat)	Detail

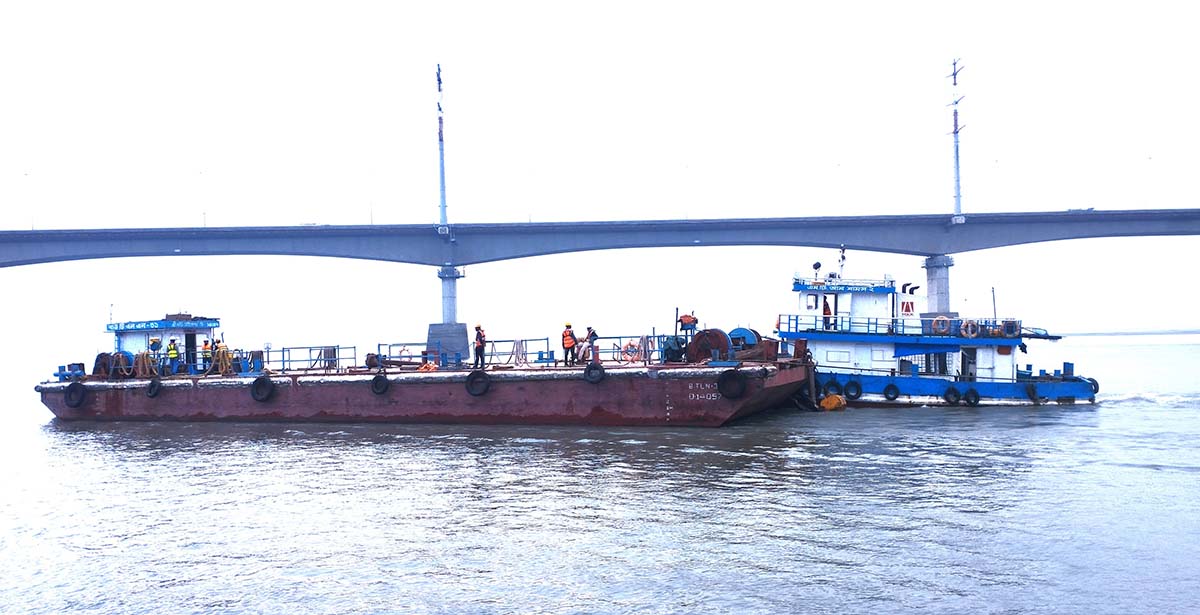

29.	BARGE “TLN – 31”	400 MT	2008	5.22 Ts/m2	105’ X 30’ X 8’	Detail

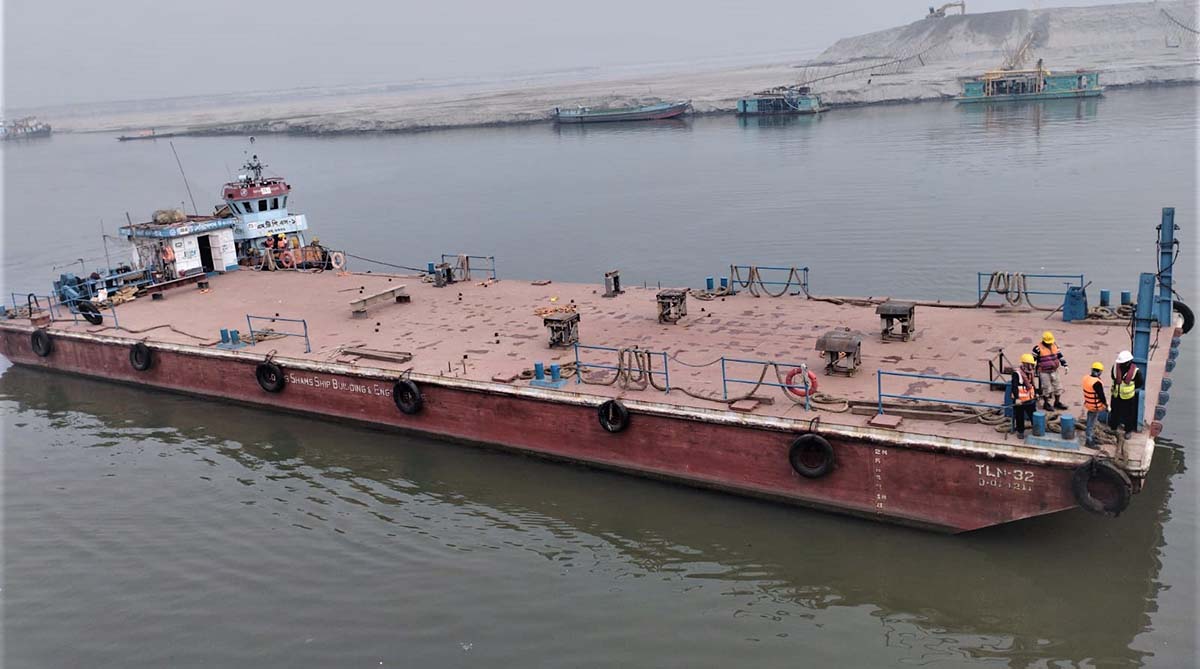

30.	BARGE “TLN – 32”	650 MT	2015	13.00 Ts/m2	135’ X 35’ X 8’	Detail

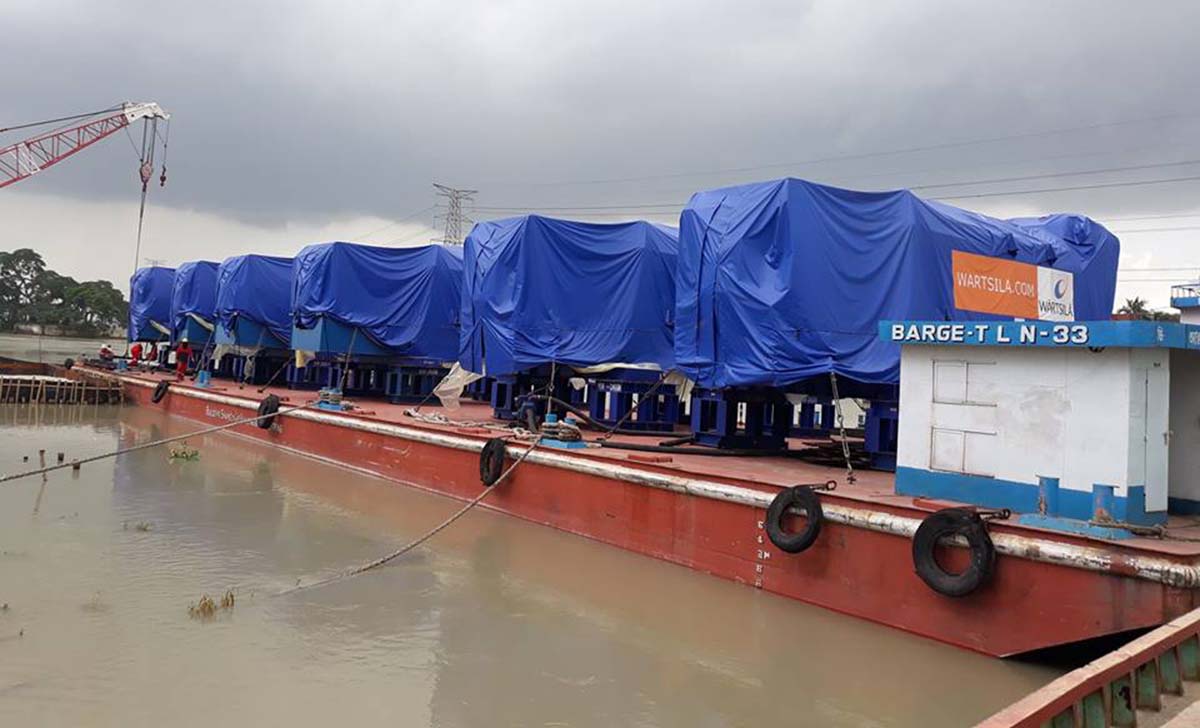

31.	BARGE “TLN – 33”	1500 MT	2017	14.00 Ts/m2	180’ X 50’ X 10’	Detail

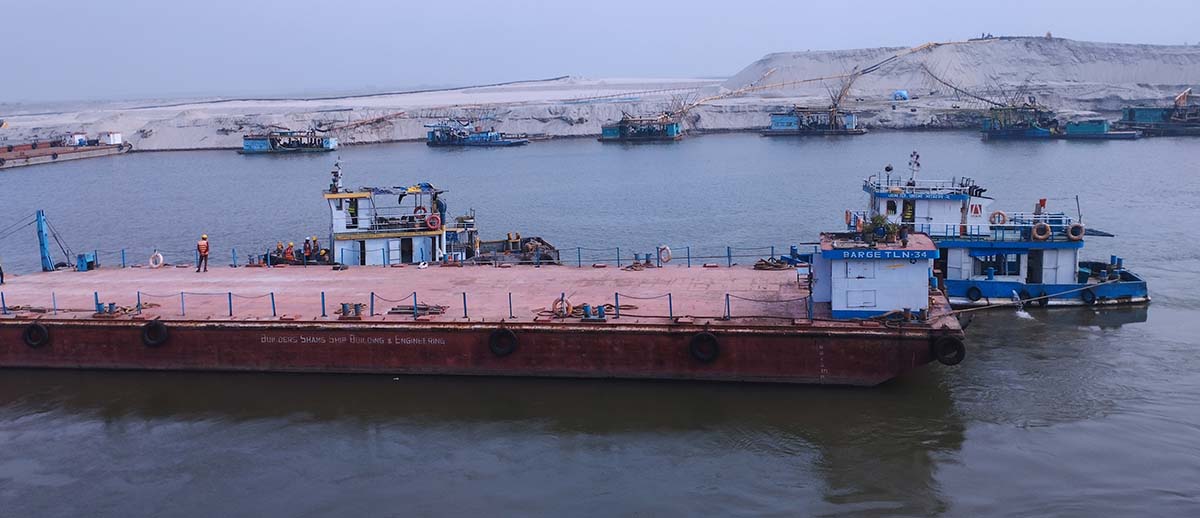

32.	BARGE "TLN – 34"	650 MT	2016	4.21 Ts/m2	135’ X 35’ X 8’	Detail

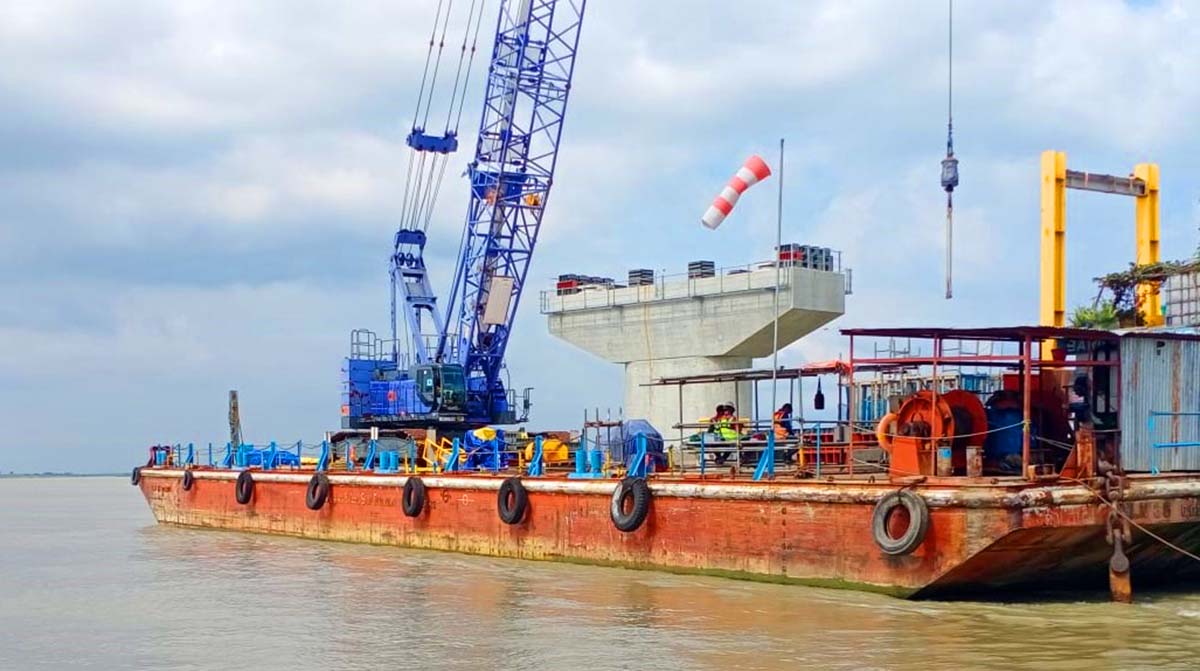

33.	BARGE "TLN – 35"	1250 MT	2017	4.21 Ts/m2	150’ X 50’ X 10’	Detail
34.	BARGE "TLN – 36"	100 MT	2016	Light Cargo	70’ x 24’ x 4’	Detail

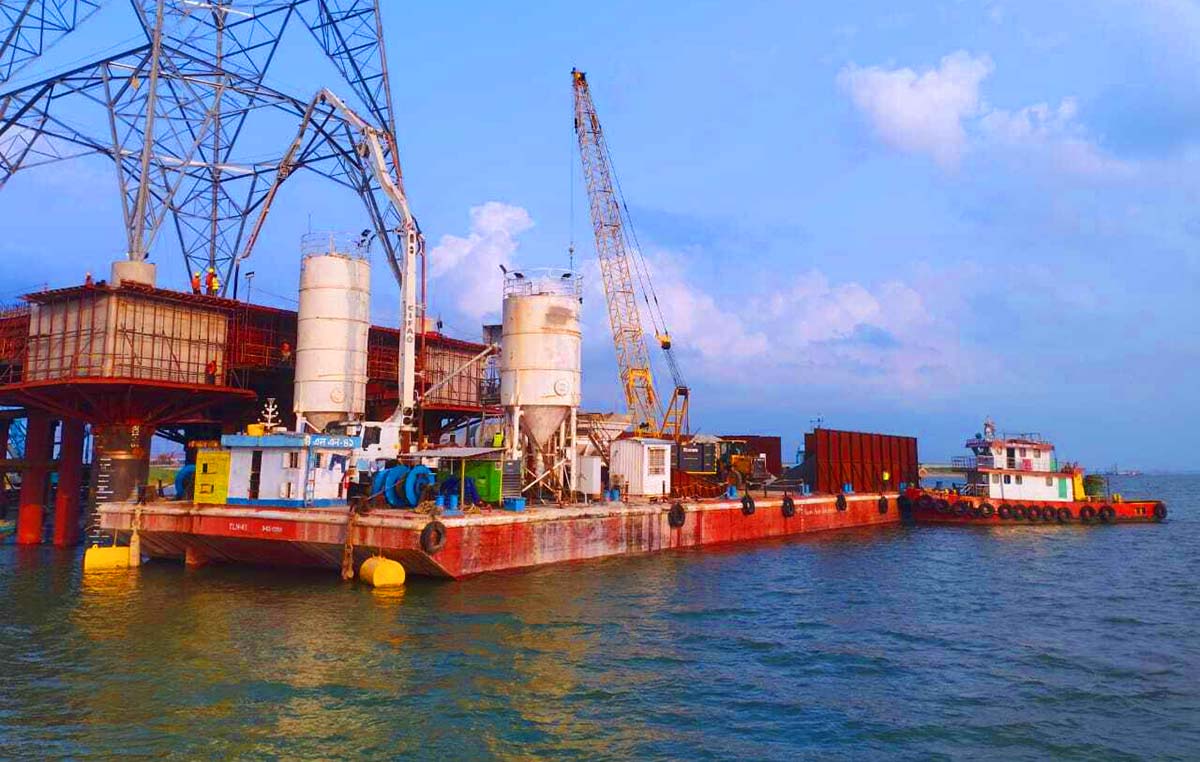

35.	BARGE "TLN – 41"	2600 MT	2018	20.00 Ts/m2	200’ X 60’ X 14’ (To be ready on Nov’18)	Detail
36.	BARGE "TLN – 42"	30 MT	2018	Passenger	45’ x 11’ x 4’ (Passenger Ferry/ 25 HP x 2)	Detail

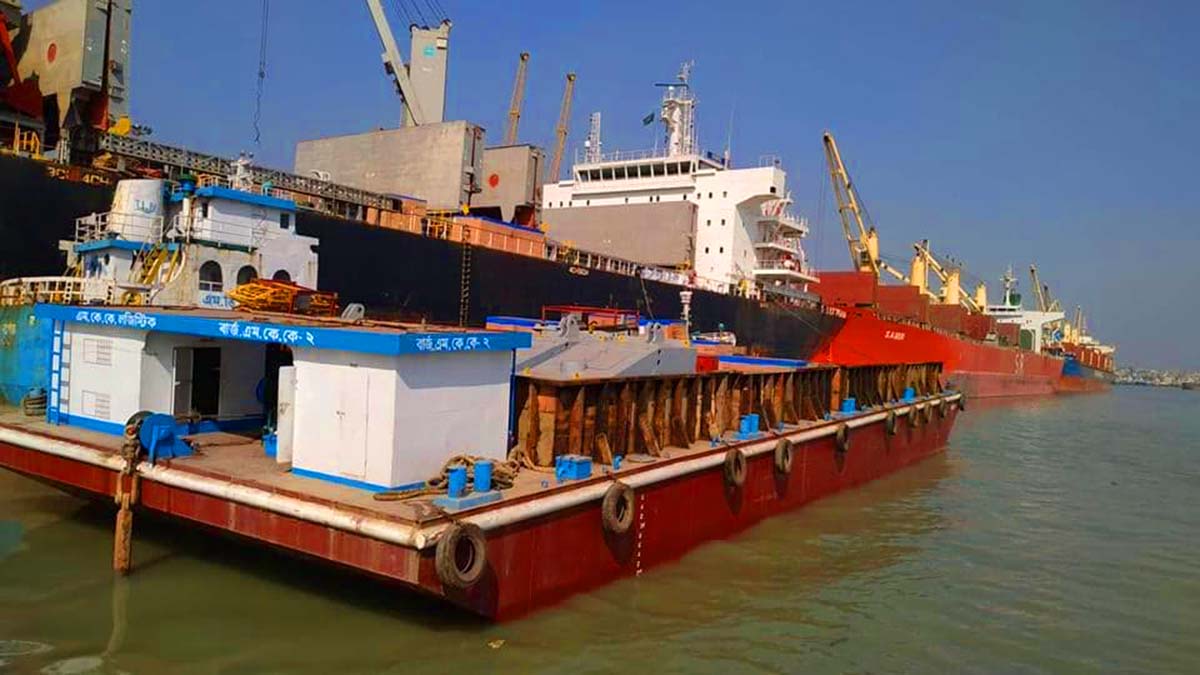

37.	BARGE "MKK-2"	1500 MT	2018	14.00 Ts/m2	155 x 46.5 x 14’	Detail

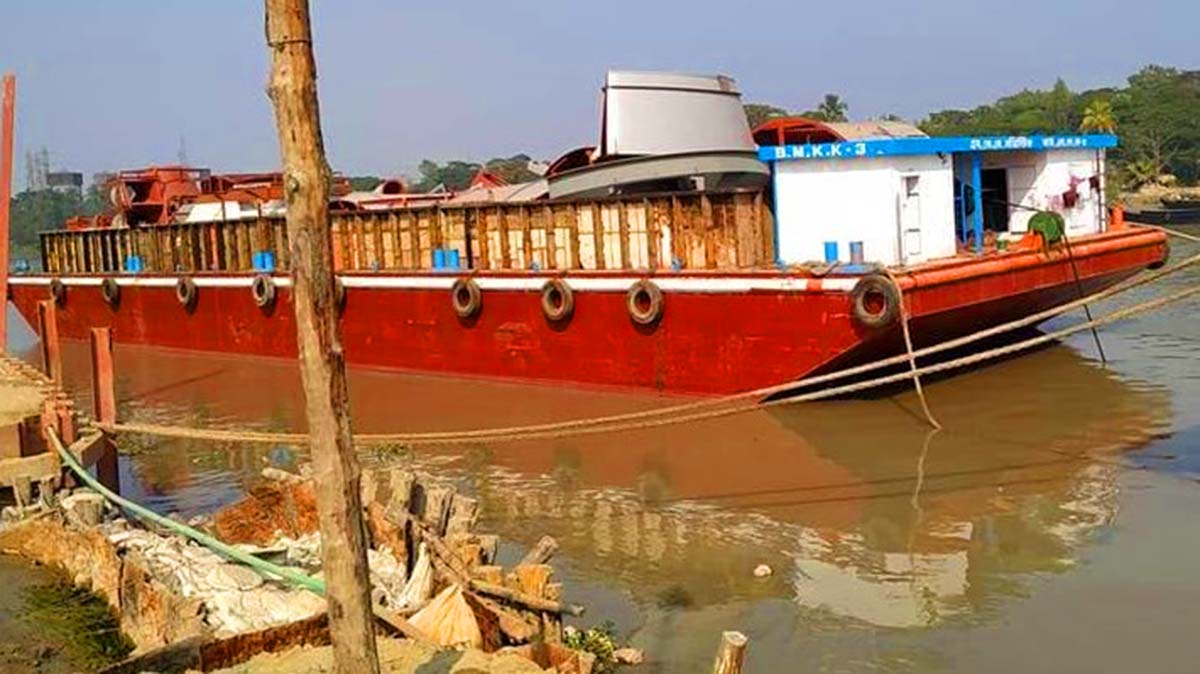

38.	BARGE "MKK-3"	1500 MT	2018	14.00 Ts/m2	155 x 46.5 x 14’(To be ready on Nov’18)	Detail

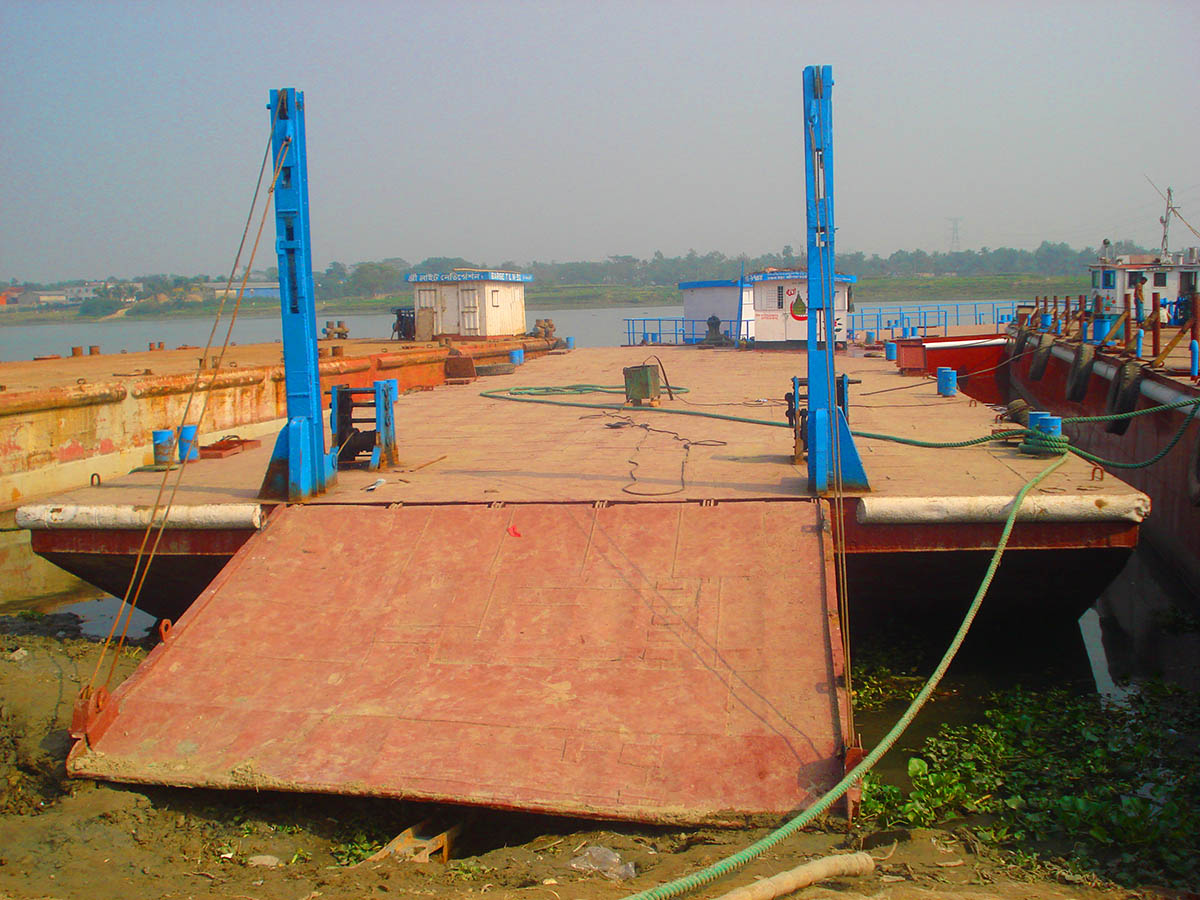

39.	BARGE "QAWMI –1"	350 MT	2001	5.43 Ts/m2	105’ X 32’ X 6.5’	Detail
40.	BARGE "QAWMI – 3"	650 MT	2014	4.21 Ts/m2	150’ X 35’ X 7’	Detail
CC	CARGO VSL/SELF PROPELLED (HATCH LOADER)	HATCH SIZES
41.	M.V."MKK – 1"	2,000 MT	2012	N/A	34 x 24’ & 46 x 24’ x 2 Nos	Detail
42.	M.V."QAWMI–2"	800 MT	2006	N/A	45.9 × 17.6’ & 37.6 × 17.6’	Detail
43.	M.V."TLN-12"	900 MT	2005	N/A	43 × 17.2’ & 48.4 x 18.2’	Detail
44.	M.V."TLN-14"	900 MT	2008	N/A	45.10 × 17.6’ & 37.7 × 17.6’	Detail

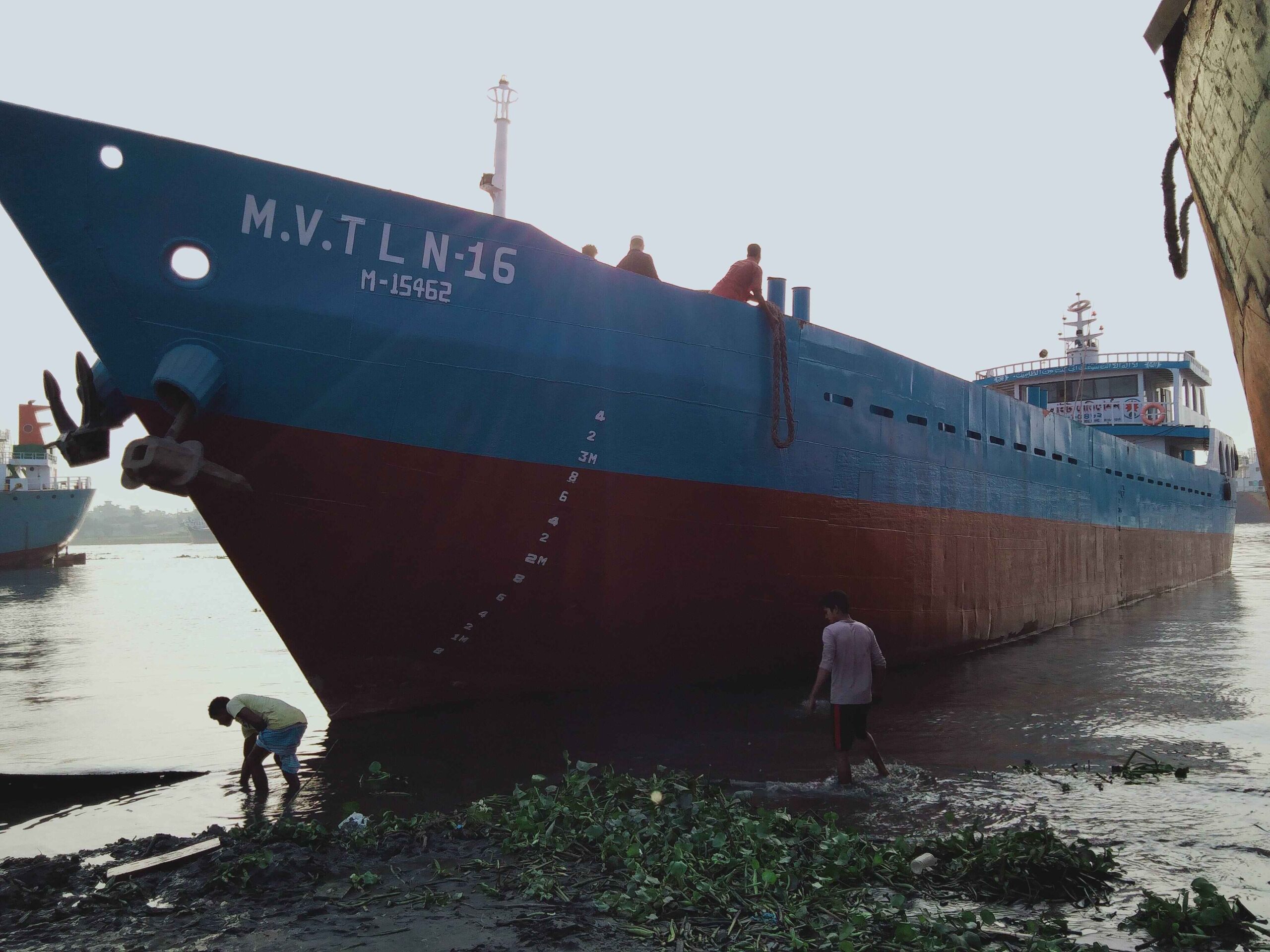

45.	M.V."TLN-16"	800 MT	2007	N/A	45.10 × 17.6’ & 37.7 × 17.6’	Detail
46.	M.V."TLN-17"	800 MT	2006	N/A	45.10 × 17.6’ & 37.7 × 17.6’	Detail

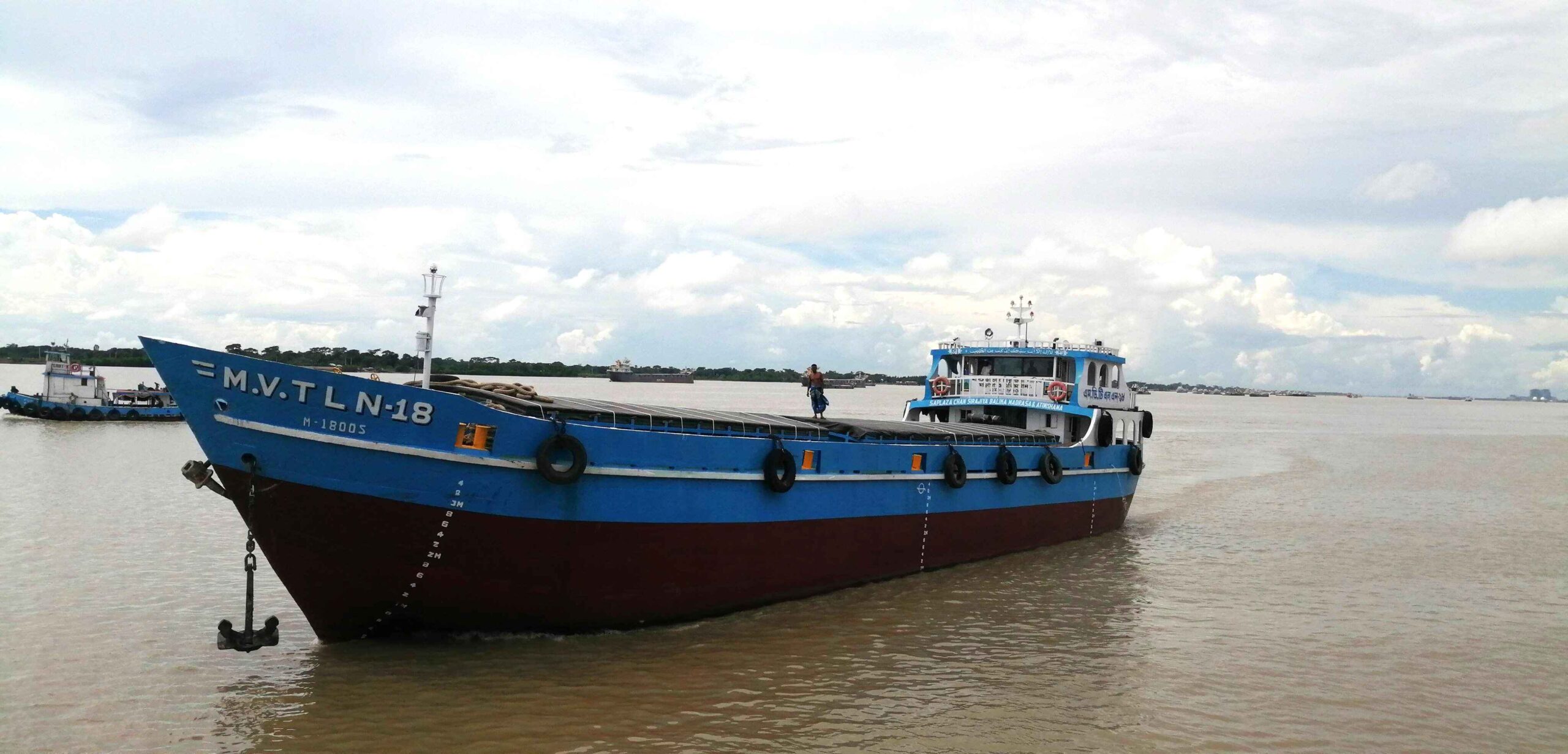

47.	M.V."TLN-18"	800 MT	2008	N/A	34 × 18’ & 42 × 18’	Detail
48.	M.V."TLN-21"	1200 MT	2013	N/A	41 x 23’ & 44.2 x 23.2’	Detail
49.	M.V."TLN-22"	1000 MT	2005	N/A	48.8 x 20’ & 43.2 x 19’	Detail
50.	M.V."TLN-27"	1000 MT	2008	N/A	43.5 x 20.6’ & 45 x 20.6’	Detail

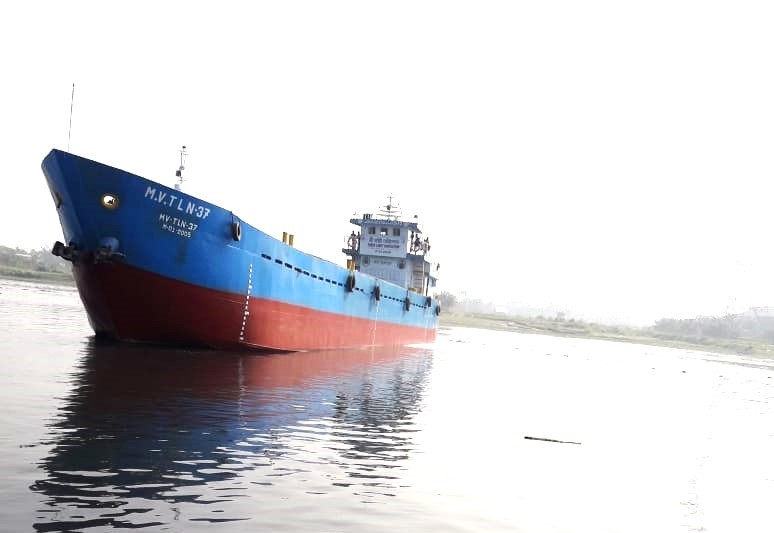

51.	M.V."TLN – 37"	850 MT	2019	N/A	166′ × 26′ × 12′	Detail

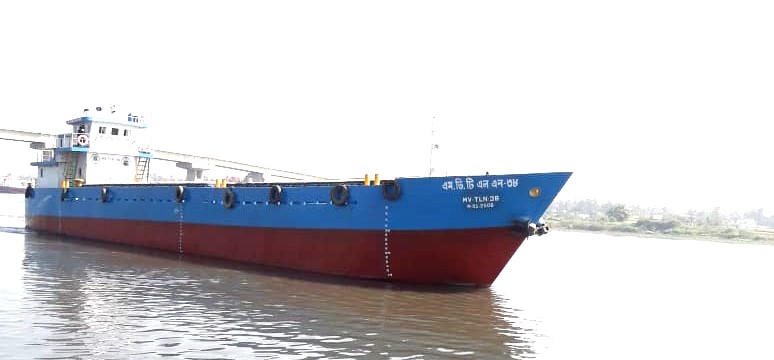

52.	M.V."TLN – 38"	850 MT	2019	N/A	166′ × 26′ × 12′	Detail
53.	M.V."TLN – 42"	20 Person	2018	N/A	17.71 × 5.79 × 1.21 (Meter) = 58′ × 19′ ×4′	Detail

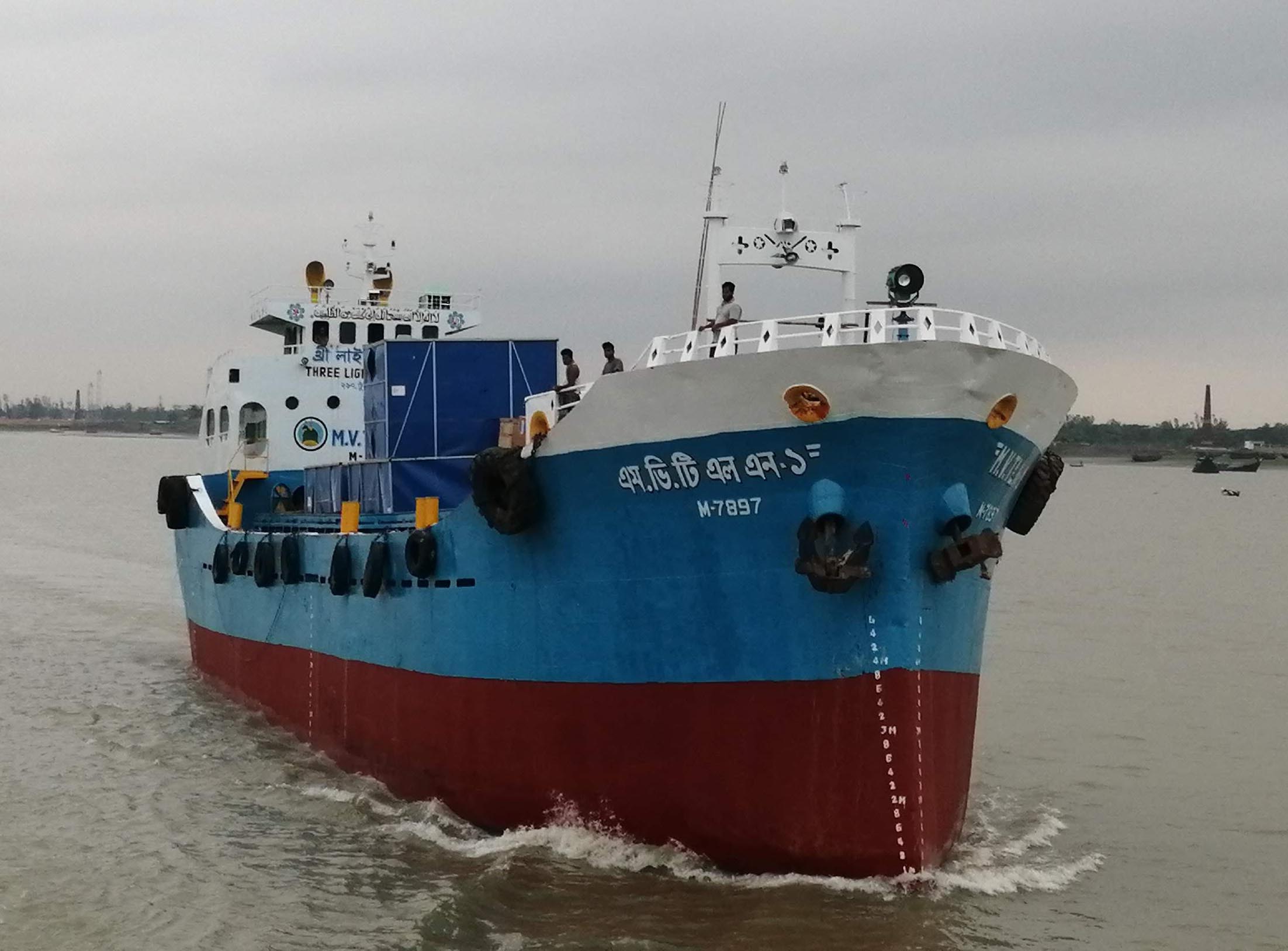

55.	M.V."TLN – 1"	2000MT	2012	N/A	220.90′ × 34.96′ × 16′	Detail
54.	GENARATOR BOAT "SSBL - 2 "		2016	N/A	8.68 X 8.48 X 1.52 Meter = 29’ X 28 ’ X 5’	Detail
55.	ANCHOR BOAT "SSBL -1 "		2016	N/A	15.75 X 6.13 X 1.53 Meter = 52’ X 20 ’ X 5'	Detail

BARGE-M.V.-SSBL---3 — BARGE M.V. SSBL - 3"

M.V.-TLN-1-(AYSHA-ADNAN) — M.V.TLN-1 (AYSHA ADNAN)

ANCHOR-BOAT-SSBL--2 — GENARATOR BOAT "SSBL - 2 "

ANCHOR-BOAT-SSBL--1 — ANCHOR BOAT "SSBL -1 "

ALL

SL. NO.	NAME OF EQUIPMENT	CAPACITY	YOB	DECK STRENGTH	CATEGORY & DIMENSION OF EQUIPMENT	View detail
AA	TUG
01.	M.T. “LIGHT – 1”	1800 BHP	2008	N/A	INLAND TUG (2 ENGINES)	Detail
02.	M.T. “LIGHT – 3”	500 BHP	2004	N/A	INLAND TUG (2 ENGINE)	Detail
03.	M.T. “LIGHT – 4”	640 BHP	2005	N/A	INLAND TUG (2 ENGINE)	Detail
04.	M.T. “LIGHT – 5”	500 BHP	1991	N/A	INLAND TUG (2 ENGINE)	Detail
05.	M.T. “LIGHT – 7”	180 BHP	2005	N/A	INLAND TUG (1 ENGINE)	Detail
06.	M.T. “LIGHT – 8”	250 BHP	2008	N/A	INLAND TUG (1 ENGINE)	Detail
07.	M.T. “LIGHT – 9”	500 BHP	2008	N/A	INLAND TUG (2 ENGINE)	Detail
08.	M.T. “LIGHT – 11”	550 BHP	2000	N/A	INLAND TUG (2 ENGINE)	Detail
09.	M.T. “LIGHT – 12”	1800 BHP	2018	N/A	INLAND TUG (2 ENGINE)	Detail
10.	M.T. “ASH - SHAMS - 1”	250 HP	2018	N/A	INLAND TUG (1 ENGINE)	Detail
11.	M.T. “ASH - SHAMS - 2”	250 HP	2019	N/A	INLAND TUG (2 ENGINE)	Detail
BB	DECK LOADER BARGE
12.	BARGE “TLN – 2”	500 MT	2001	5.22 Ts/m2	105’ X 30’ X 9’	Detail
13.	BARGE “TLN – 3”	430 MT	1980	5.22 Ts/m2	101’ X 30’ X 8’	Detail
14.	BARGE “TLN – 4”	270 MT	2002	4.40 Ts/m2	105’ X 28’ X 5.5’	Detail
15.	BARGE “TLN – 5”	300 MT	2001	Light Cargo	130’ X 30’ X 5.6’	Detail
16.	BARGE M.V. “TLN–6”	650 MT	2016	12.39 Ts/m2	165’ X 30’ X 8’ (SELF PROPELLED/ 700 HP)	Detail
17.	BARGE “TLN – 7”	450 MT	2007	7.81 Ts/m2	98’ X 40’ X 7.6’	Detail
18.	BARGE “TLN – 8”	250 MT	2006	Light Cargo	112’ X 24’ X 6.5’(SELF PROPELLED/ 250 HP)
19.	BARGE “TLN – 11”	350 MT	2005	6.78 Ts/m2	106’ X 32’ X 6.5’	Detail
20.	BARGE “TLN – 19”	350 MT	2005	6.78 Ts/m2	119’ X 30.3’ X 5.9’+18’ X 2=36’ RAMP	Detail
21.	BARGE “TLN – 20”	900 MT	2005	5.25 Ts/m2	112’ X 52’ X 9.5’+18’ X 2=36’ RAMP	Detail
22.	BARGE “TLN – 23”	800 MT	2011	13.79 Ts/m2	150’ X 40’ X 8’	Detail
23.	BARGE “TLN – 24”	650 MT	2014	4.21 Ts/m2	150’ X 35’ X 7’	Detail
24.	BARGE “TLN – 25”	1800 MT	2010	13.79 Ts/m2	202’ X 45’ X 11’	Detail
25.	BARGE “TLN – 26”	800 MT	2014	13.79 Ts/m2	150’ X 40’ X 8’	Detail
26.	BARGE “TLN – 28”	1250 MT	2015	14.00 Ts/m2	150’ X 50’ X 10’	Detail
27.	BARGE “TLN – 29”	700 MT	2008	4.20 Ts/m2	170’ X 34’ X 8’	Detail
28.	BARGE “TLN – 30”	150 MT	2009	Light Cargo	60’ X 25’ X 6’ (Anchor Boat)	Detail
29.	BARGE “TLN – 31”	400 MT	2008	5.22 Ts/m2	105’ X 30’ X 8’	Detail
30.	BARGE “TLN – 32”	650 MT	2015	13.00 Ts/m2	135’ X 35’ X 8’	Detail
31.	BARGE “TLN – 33”	1500 MT	2017	14.00 Ts/m2	180’ X 50’ X 10’	Detail
32.	BARGE "TLN – 34"	650 MT	2016	4.21 Ts/m2	135’ X 35’ X 8’	Detail
33.	BARGE "TLN – 35"	1250 MT	2017	4.21 Ts/m2	150’ X 50’ X 10’	Detail
34.	BARGE "TLN – 36"	100 MT	2016	Light Cargo	70’ x 24’ x 4’	Detail
35.	BARGE "TLN – 41"	2600 MT	2018	20.00 Ts/m2	200’ X 60’ X 14’ (To be ready on Nov’18)	Detail
36.	BARGE "TLN – 42"	30 MT	2018	Passenger	45’ x 11’ x 4’ (Passenger Ferry/ 25 HP x 2)	Detail
37.	BARGE "MKK-2"	1500 MT	2018	14.00 Ts/m2	155 x 46.5 x 14’	Detail
38.	BARGE "MKK-3"	1500 MT	2018	14.00 Ts/m2	155 x 46.5 x 14’(To be ready on Nov’18)	Detail
39.	BARGE "QAWMI –1"	350 MT	2001	5.43 Ts/m2	105’ X 32’ X 6.5’	Detail
40.	BARGE "QAWMI – 3"	650 MT	2014	4.21 Ts/m2	150’ X 35’ X 7’	Detail
CC	CARGO VSL/SELF PROPELLED (HATCH LOADER)	HATCH SIZES
41.	M.V."MKK – 1"	2,000 MT	2012	N/A	34 x 24’ & 46 x 24’ x 2 Nos	Detail
42.	M.V."QAWMI–2"	800 MT	2006	N/A	45.9 × 17.6’ & 37.6 × 17.6’	Detail
43.	M.V."TLN-12"	900 MT	2005	N/A	43 × 17.2’ & 48.4 x 18.2’	Detail
44.	M.V."TLN-14"	900 MT	2008	N/A	45.10 × 17.6’ & 37.7 × 17.6’	Detail
45.	M.V."TLN-16"	800 MT	2007	N/A	45.10 × 17.6’ & 37.7 × 17.6’	Detail
46.	M.V."TLN-17"	800 MT	2006	N/A	45.10 × 17.6’ & 37.7 × 17.6’	Detail
47.	M.V."TLN-18"	800 MT	2008	N/A	34 × 18’ & 42 × 18’	Detail
48.	M.V."TLN-21"	1200 MT	2013	N/A	41 x 23’ & 44.2 x 23.2’	Detail
49.	M.V."TLN-22"	1000 MT	2005	N/A	48.8 x 20’ & 43.2 x 19’	Detail
50.	M.V."TLN-27"	1000 MT	2008	N/A	43.5 x 20.6’ & 45 x 20.6’	Detail
51.	M.V."TLN – 37"	850 MT	2019	N/A	166′ × 26′ × 12′	Detail
52.	M.V."TLN – 38"	850 MT	2019	N/A	166′ × 26′ × 12′	Detail
53.	M.V."TLN – 42"	20 Person	2018	N/A	17.71 × 5.79 × 1.21 (Meter) = 58′ × 19′ ×4′	Detail
55.	M.V."TLN – 1"	2000MT	2012	N/A	220.90′ × 34.96′ × 16′	Detail
54.	GENARATOR BOAT "SSBL - 2 "		2016	N/A	8.68 X 8.48 X 1.52 Meter = 29’ X 28 ’ X 5’	Detail
55.	ANCHOR BOAT "SSBL -1 "		2016	N/A	15.75 X 6.13 X 1.53 Meter = 52’ X 20 ’ X 5'	Detail

INLAND TUG

DECK LOADER BARGE

CARGO VESSEL PARTICULAR

OTHERS

a concern of

NAME	:	M.T. “LIGHT – 1”
YEAR OF BUILT	:	2008
REGISTRATION NO.	:	M-18021, Date: 16.11.2008
ENGINE PARTICULARS	:	2 ENGINES, DAIHATSU – 900 × 2 = 1800 BHP
SPEED PER HORS-	:	14 KM
PROPELER SIZE	:	70/72”
FUEL CONSUMTION	:	TANK 2PCS PER HOUR-100LTR
ANCHOR	:	1 ANCHOR, Weight 800 KG.
WINCH	:	POWER WINCH
CHAIN	:	3 Shackle 270 Rft.
VHF	:	Yes.
GPS	:	Yes.

NAME	:	M.T. “LIGHT – 1”
YEAR OF BUILT	:	2004
REGISTRATION NO.	:	M.-10604, Date: 11.07.2010.
ENGINE PARTICULARS	:	2 ENGINES, GM 250 × 2 = 500 BHP
SPEED PER HORS-	:	8 KM
PROPELER SIZE	:	40/42” 2PCS
FUEL CONSUMTION	:	TANK 01PCS PER HOUR-40LTR
ANCHOR	:	5 KATA ANCHOR
WINCH	:	No
CHAIN	:	No.
VHF	:	NIL.
GPS	:	NIL

NAME	:	M.T. “LIGHT – 4”
YEAR OF BUILT	:	2005
REGISTRATION NO.	:	M.-10756, Date: 24.07.2005.
ENGINE PARTICULARS	:	2 ENGINES, CALVIN 330 × 2 = 640 BHP
SPEED PER HORS-	:	8 KM
PROPELER SIZE	:	60/62” & 56/52” 2PCS
FUEL CONSUMTION	:	TANK 02PCS PER HOUR-45LTR
ANCHOR	:	1 ANCHOR 100 KG
WINCH	:	HAND WINCH
CHAIN	:	Wire 120 FEET
VHF	:	NO
GPS	:	NO

NAME	:	M.T. “LIGHT – 5”
YEAR OF BUILT	:	1991
REGISTRATION NO.	:	M.-10811, Date: 11.09.2005.
ENGINE PARTICULARS	:	2 ENGINES, GM 250 × 2 = 500 BHP
SPEED PER HORS-	:	8 KM
PROPELER SIZE	:	60/62” 2PCS
FUEL CONSUMTION	:	TANK 01PCS PER HOUR-40LTR
ANCHOR	:	1 Anchor 35 KG
WINCH	:	NO Capstan NO WINCH
CHAIN	:	1 Shackle 90 FEET.
VHF	:	Yes.
GPS	:	No

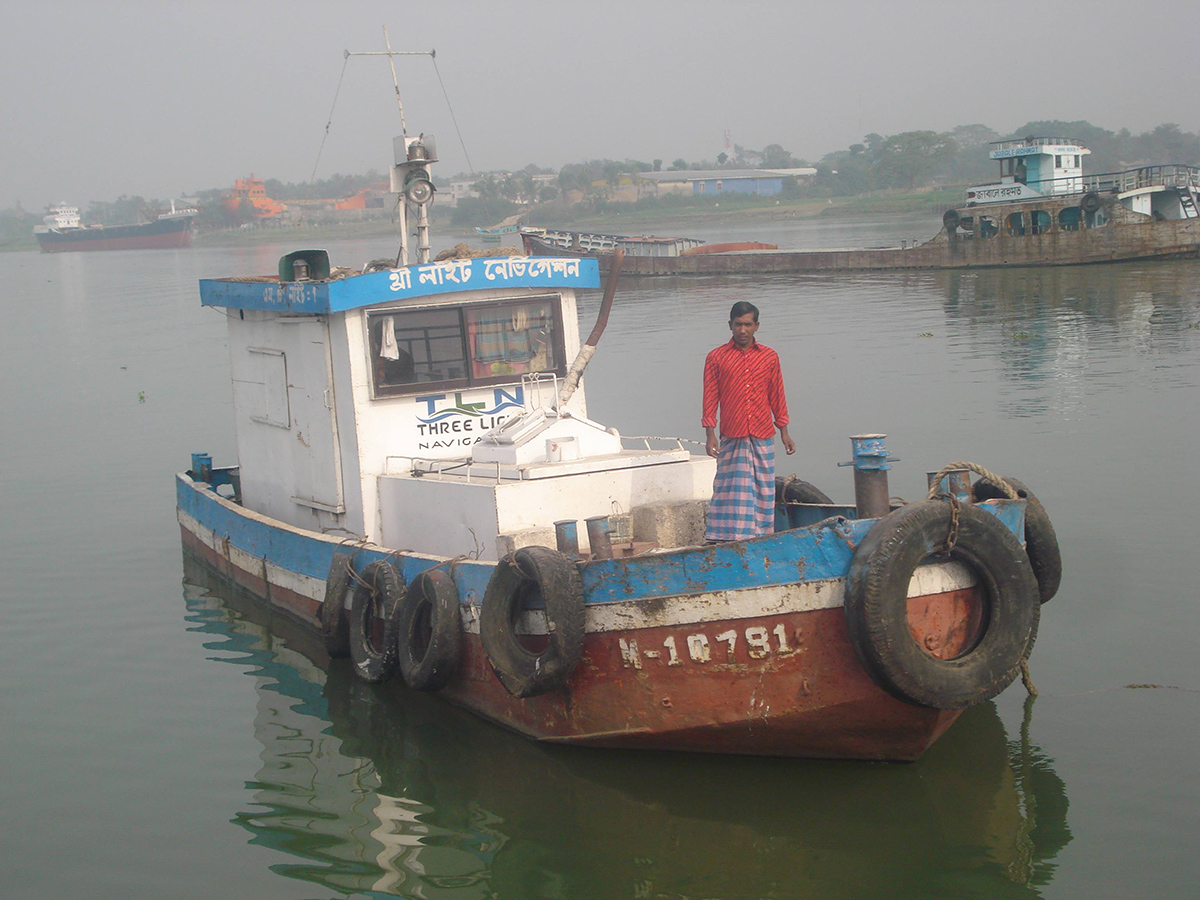

NAME	:	M.T. “LIGHT – 7”
YEAR OF BUILT	:	2005
REGISTRATION NO.	:	M.-10781 Dates: 21.08.2005.
ENGINE PARTICULAR	:	1 ENGINE, ISUZU 180 BHP
SPEED PER HORS	:	8 KM
PROPELLER SIZE	:
FUEL CONSUMTION	:	TANK 01PCS PER HOUR-15LTR
ANCHOR	:	NO
WINCH	:	NO
CHAIN	:	No
VHF	:	No
GPS	:	No

Three Light Navigation

OUR COMPANIES

Quick Links

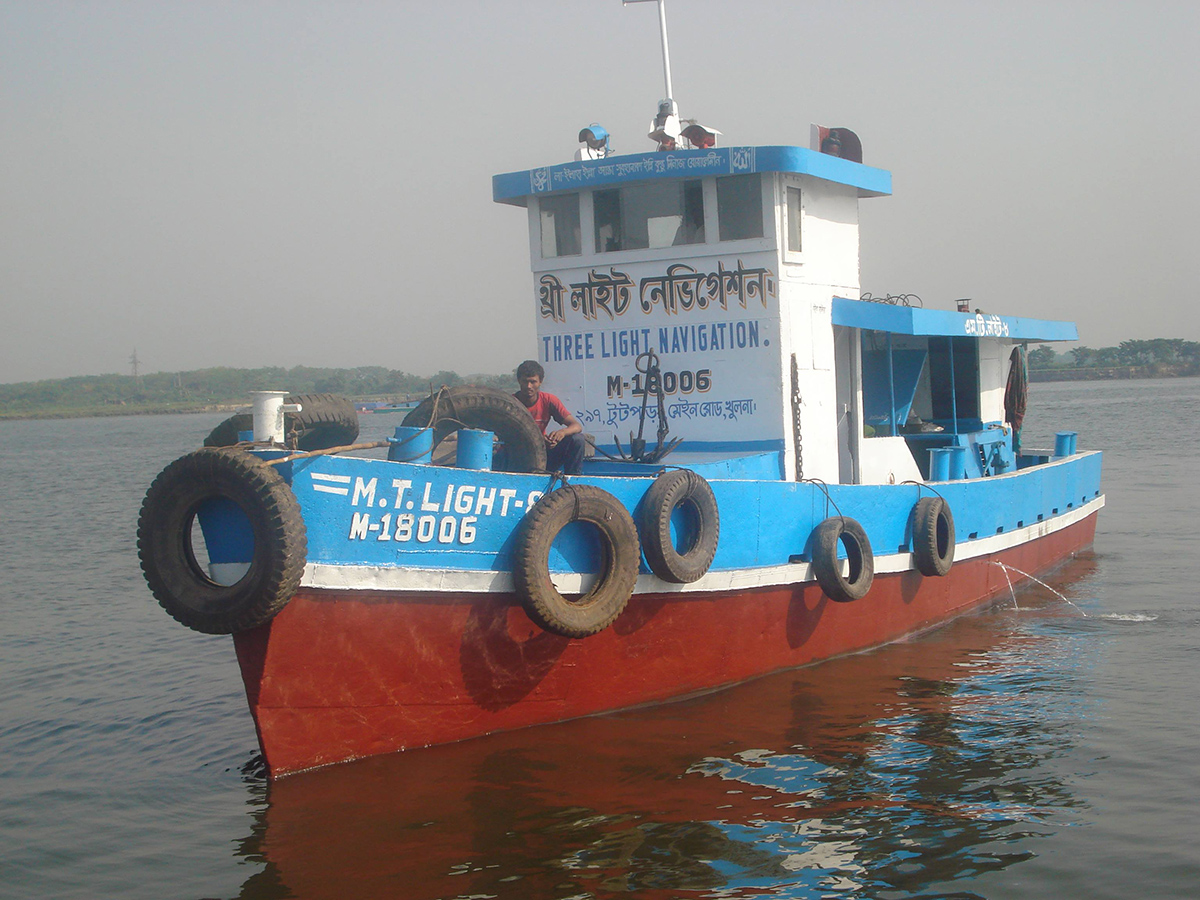

NAME	:	M.T. “LIGHT – 8”
YEAR OF BUILT	:	2008
REGISTRATION NO.	:	M.-18006, Date: 10.08.2008.
ENGINE PARTICULAR	:	1 ENGINE, GM 250 BHP
SPEED PER HORS	:	8 KM
PROPELLER SIZE	:	40/42”
FUEL CONSUMTION	:	TANK 02PCS PER HOUR-20LTR
ANCHOR	:	5 KATA Anchor
WINCH	:	NO
CHAIN	:	Wire 150 FEET
VHF	:	No
GPS	:	No

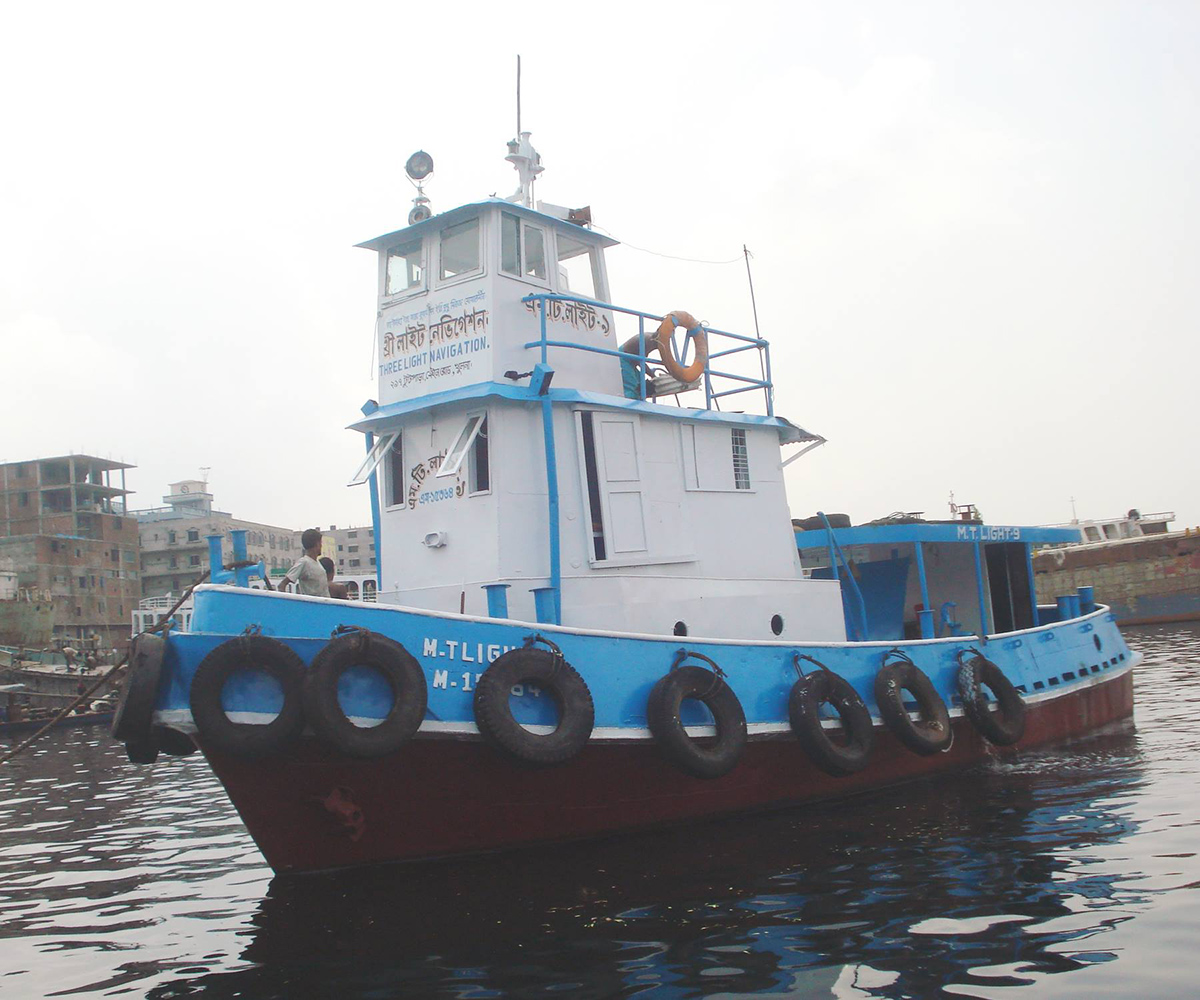

NAME	:	M.T. “LIGHT – 9”
YEAR OF BUILT	:	2005
REGISTRATION NO	:	M.-15364 Date: 29.03.2008.
ENGINE PARTICULAR	:	2 ENGINES, ISUZU 250 × 2 = 500 BHP
SPEED PER HORS	:	6 KM
PROPELER SIZE	:	60/62”
FUEL CONSUMTION	:	TANK SERVICE 02PCS MAIN 2PCS PER HOUR-40LTR
ANCHOR	:	1 Anchor 60 KG
WINCH	:	HAND WINCH
CHAIN	:	1.5 Shackles =90 FEET
VHF	:	No
GPS	:	No

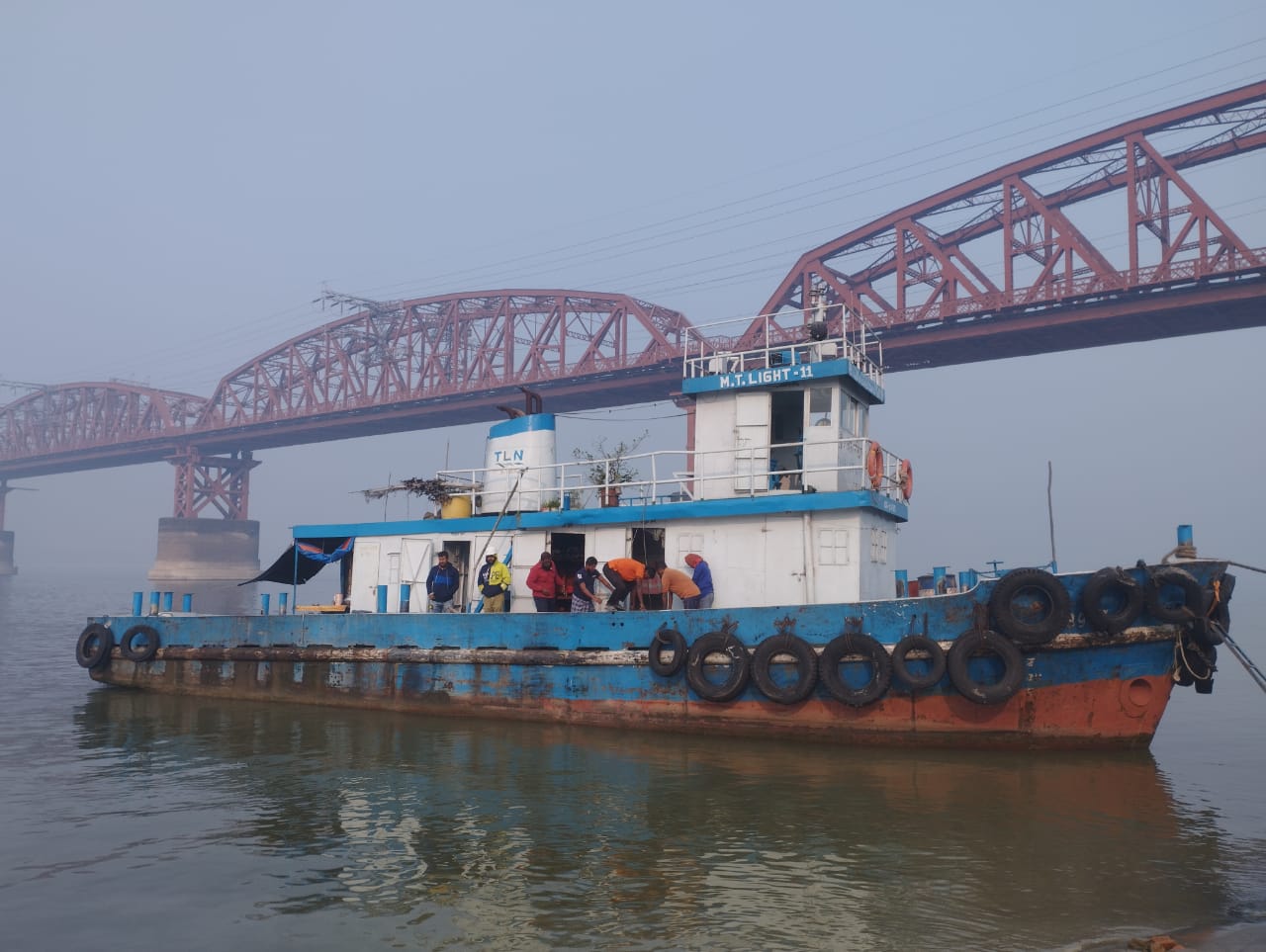

NAME	:	M.T. “LIGHT – 11”
YEAR OF BUILT	:	2008
REGISTRATION NO.	:	M.-8940, Date: 27.09.2010.
ENGINE PARTICULAR	:	2 ENGINES, GM USA × 2 = 550 BHP
SPEED PER HORS	:	6 NM
PROPELER SIZE	:	60/62”
FUEL CONSUMTION	:	TANK SERVICE 02PCS MAIN 1PCS PER HOUR-50LTR
ANCHOR	:	1 Anchor 100 KG
WINCH	:	HAND WINCH
CHAIN	:	1.5 Shackles = 135 FEET.
VHF	:	No
GPS	:	No

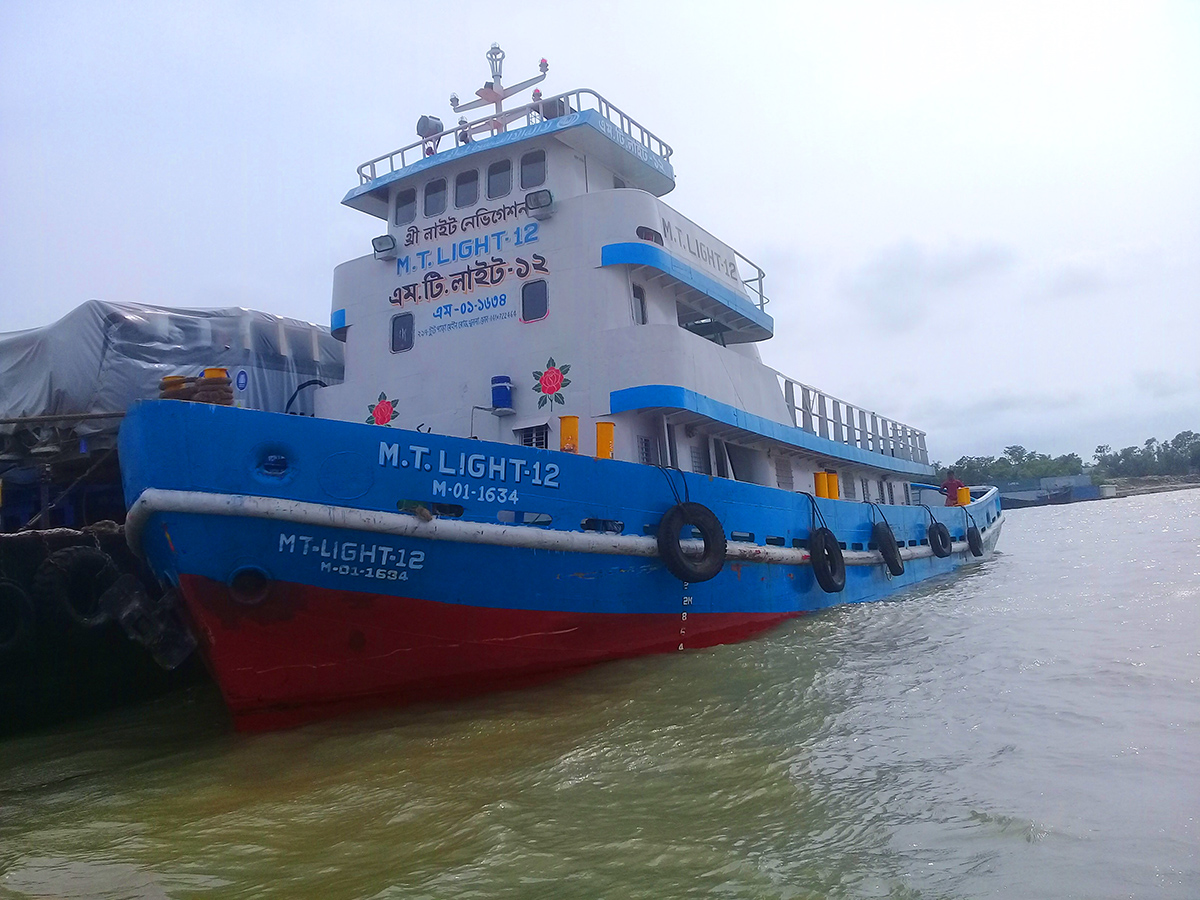

NAME	:	M.T. “LIGHT – 12”
YEAR OF BUILT	:	2018
REGISTRATION NO.	:	M – 01-1634 Date: 05.08.2018
ENGINE PARTICULAR	:	2 ENGINES, DAIHATSU – 900 × 2 = 1800 BHP
SPEED PER HORS	:	10 NM
PROPELLER SIZE	:	74/76”
FUEL CONSUMTION	:	TANK SERVICE 01PCS MAIN 2PCS PER HOUR-110LTR
ANCHOR	:	1 Anchor 1000 KG
WINCH	:	POWER WINCH
CHAIN	:	3 Shackles = 270 Rft. Power winch
VHF	:	YES
GPS	:	YES

NAME	:	M.T. ASH – SHAMS-1”
YEAR OF BUILT	:	2018
REGISTRATION NO.	:	M – 01-1941 Date-12.11.2019
ENGINE PARTICULAR	:	1 ENGINES, GM- 250 BHP
ANCHOR	:	NILL
SPEED PER HORS	:
PROPELLER SIZE	:	40/42”
FUEL CONSUMTION	:	TANK SERVICE 01PCS MAIN 01PCS PER HOUR-25LTR
WINCH	:	NILL
CHAIN	:	NILL
VHF	:	NILL
GPS	:	NILL

NAME	:	M.T. ASH – SHAMS-2”
YEAR OF BUILT	:	2019
REGISTRATION NO.	:
ENGINE PARTICULAR	:	2 ENGINES, GM- 250*2 BHP
ANCHOR	:	1 Anchor
SPEED PER HORS	:
PROPELLER SIZE	:	50/52’’
FUEL CONSUMTION	:
WINCH	:	CAPSTAN- 01
CHAIN	:	2 Shackles = 180 Rft.
VHF	:	NILL
GPS	:	NILL

BARGE NAME	:	BARGE QWAMI
YEAR OF BUILT	:	2001
REGISTRATION NO.	:	D. 9755 Date: 21.05.2001
TYPE	:	Deck Loader Barge
SIZE	:	32.28 X 9.75 X 2.03 Meter = 105’ X 32’ X 6.5’
CAPACITY	:	350 M Tons
RAMP SIZE	:	14.9’ X 13.4΄ 2 PCS
RAMP STAND TO STAND DISTANCE	:	17’
DECK LOADING SPACE	:	78΄ X 28’
DECK STRENGHT	:	5.43 Ton/m
ANCHOR	:	1 Anchor
WINCH	:	Capstan
CHAIN	:	3 Shackles = 270 Rft

BARGE NAME	:	BARGE QWAMI-3
YEAR OF BUILT	:	2014
REGISTRATION NO.	:	D-10-1047 Date: 04.09.2014.
TYPE	:	Deck Loader Barge
SIZE	:	45.75 X 10.68 X 2.14 Meter= 150’ X 35’ X 7’.
CAPACITY	:	650 M Tons
RAMP SIZE	:	16′ X 17′ (DUAL RAMP)
RAMP STAND TO STAND DISTANCE	:	17’.6”
DECK LOADING SPACE	:	122′ X 30′
DECK STRENGHT	:	4.21 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Power Winch
CHAIN	:	Wire 200 Rft

BARGE NAME	:	BARGE “TLN – 2”
YEAR OF BUILT	:	2001
REGISTRATION NO.	:	D. 9754 Date: 15.03.2007
TYPE	:	Deck Loader Barge
SIZE	:	32.31 X 9.19 X 2.59 Meter = 105’ X 30’ X 9’
CAPACITY	:	500 M Tons
RAMP SIZE	:	15΄ X 13’ (DUAL RAMP)
RAMP STAND TO STAND DISTANCE	:	17’.7”
DECK LOADING SPACE	:	77΄ X 25’
DECK STRENGHT	:	5.22 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Manual System.
CHAIN	:	Wire

BARGE NAME	:	BARGE “TLN – 3”
YEAR OF BUILT	:	1980
REGISTRATION NO.	:	D.C-858 Date: 12.12.2011
TYPE	:	Deck Loader Barge
SIZE	:	30.47 X 9.14 X 2.49 Meter = 101’ X 30’ X 8’
CAPACITY	:	430 M Tons
RAMP SIZE	:	16’ X 16’ X (DUAL RAMP)
RAMP STAND TO STAND DISTANCE	:	16’
DECK LOADING SPACE	:	77΄ X 25’
DECK STRENGHT	:	5.22 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Hand Winch
CHAIN	:	2 Shackles= 180 Rft.

NAME	:	BARGE “TLN – 4”
YEAR OF BUILT	:	2002
REGISTRATION NO.	:	D – 9759 Date: 17.06.2002
TYPE	:	Deck Loader Barge
SIZE	:	32 X 8.61 X 1.68 Meter =105’ X 28’ X 5.5′
CAPACITY	:	270 M Tons
RAMP SIZE	:	16’ X 17 ’ X (DUAL RAMP)
RAMP STAND TO STAND DISTANCE	:	17’.3”
DECK LOADING SPACE	:	85΄ X 25’
DECK STRENGHT	:	4.4.Ts/ m2
ANCHOR	:	1 Anchor
WINCH	:	Manual System
CHAIN	:	Wire 200 Rft

BARGE NAME	:	BARGE “TLN – 5”
YEAR OF BUILT	:	2002
REGISTRATION NO.	:	D – 8923 Date: 20.04.2002
TYPE	:	Deck Loader Barge
SIZE	:	39.62 X 9.07 X 1.57 Meter= 130’ X 30’ X 5.6′
CAPACITY	:	300 M Tons
RAMP SIZE	:	13.3΄ X 15’ (SINGLE RAMP)
RAMP STAND TO STAND DISTANCE	:	15’.
DECK LOADING SPACE	:	100΄ X 25’
DECK STRENGHT	:	N/A
ANCHOR	:	1 Anchor
WINCH	:	Capstan
CHAIN	:	2 Shackles = 180 Rft

BARGE NAME	:	BARGE M.V. “TLN – 6”
YEAR OF BUILT	:	2005
REGISTRATION NO.	:	M -1960 Date:30.09.2010
TYPE	:	Deck Loader Barge (SELF PROPELLED)
SIZE	:	50.30 X 9.0 X 2.43 Meter = 165’ X 30’ X 8′
CAPACITY	:	600 M Tons
RAMP SIZE	:	16΄ X 14’ (SINGLE RAMP)
RAMP STAND TO STAND DISTANCE	:	16’
DECK LOADING SPACE	:	121΄ X 25’
DECK STRENGHT	:	12.39 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Power Winch
CHAINE	:	3 Shackles = 270 Rft
ENGIN	:	2 Nos GM Engine, 250 × 2 = 500 BHP

BARGE NAME	:	BARGE “TLN – 7”
YEAR OF BUILT	:	2007
REGISTRATION NO.	:	D – 14048 Date: 11.07.2007
TYPE	:	Deck Loader Barge
SIZE	:	30 X11.89 X 2.25 Meter = 98’ X 40’ X 7.6′
CAPACITY	:	450 M Tons
RAMP SIZE	:	16΄ X 13’ (SINGLE RAMP)
RAMP STAND TO STAND DISTANCE	:	26’
DECK LOADING SPACE	:	77΄ X 35’
DECK STRENGHT	:	7.81 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Power Winch
CHAIN	:	2 Shackles = 180 Rft

BARGE NAME	:	BARGE M.V. SSBL – 3″
YEAR OF BUILT	:	2018
REGISTRATION NO.	:	M –
TYPE	:	SELF PROPELLED BARGE
SIZE	:	34.20 X 07 X 1.90 Meter = 112’ X 24’ X 6.5′
CAPACITY	:	250 M Tons
RAMP SIZE	:	14.9΄ X 13.4’ (DUAL RAMP)
RAMP STAND TO STAND DISTANCE	:	14’
DECK LOADING SPACE	:	82΄ X 17’
DECK STRENGHT	:	N/A
ANCHOR	:	1 Anchor
WINCH	:	Hand Winch
CHAIN	:	2 Shackles = 180 Rft

BARGE NAME	:	BARGE “TLN –11”
YEAR OF BUILT	:	2005
REGISTRATION NO.	:	D – 1433 Date: 23.07.2007
TYPE	:	Deck Loader Barge
SIZE	:	32.02 X 9.76 X 1.98 Meter = 106’ X 32’ X 6.5′
CAPACITY	:	350 M Tons
RAMP SIZE	:	15΄ X 13’ (SINGLE RAMP)
RAMP STAND TO STAND DISTANCE	:	16’
DECK LOADING SPACE	:	77΄ X 30’
DECK STRENGHT	:	6.78 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Capstan
CHAIN	:	2 Shackles = 180 Rft

BARGE NAME	:	BARGE “TLN –19”
YEAR OF BUILT	:	2005
REGISTRATION NO.	:	D – 1433 Date: 23.07.2007
TYPE	:	Deck Loader Barge
SIZE	:	36.28 X 9.15 X 1.68 Meter = 119’ X 30.3’ X 5.9′
CAPACITY	:	350 M Tons
RAMP SIZE	:	16’ X 18’ (SINGLE RAMP)
RAMP STAND TO STAND DISTANCE	:	18’
DECK LOADING SPACE	:	102΄ X 25’
DECK STRENGHT	:	6.78 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Manual System
CHAIN	:	Wire

BARGE NAME	:	BARGE “TLN –20”
YEAR OF BUILT	:	2005
REGISTRATION NO.	:	D -14042 Date: 02.01.2006
TYPE	:	Deck Loader Barge
SIZE	:	34.22 X 15.85 X 2.28 Meter = 112’ X 52’ X 9.5’
CAPACITY	:	1000 M Tons
RAMP SIZE	:	18.6΄ X 18’ (DUAL RAMP)
RAMP STAND TO STAND DISTANCE	:	16’.10”
DECK LOADING SPACE	:	87΄ X 47’
DECK STRENGHT	:	5.25 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Power Winch
CHAIN	:	Wire 200 Rft

NAME	:	BARGE “TLN –23”
YEAR OF BUILT	:	2011
REGISTRATION NO.	:	D -7827 Date-08.08.2012
TYPE	:	Deck Loader Barge
SIZE	:	45.73 X 12.19 X 2.43 Meter = 150’ X 40’ X 8’
CAPACITY	:	800 M Tons
RAMP SIZE	:	18΄ X 16’ 2 Units
RAMP STAND TO STAND DISTANCE	:	22’.6”
DECK LOADING SPACE	:	122΄ X 35’
DECK STRENGHT	:	13.79 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Power Winch
CHAIN	:	3 Shackles = 270 Rft

NAME	:	BARGE “TLN –24”
YEAR OF BUILT	:	2014
REGISTRATION NO.	:	D -10-1046 , Date:- 13.08.2014.
TYPE	:	Deck Loader Barge
SIZE	:	45.75 X10.68 X2.14 Meter, = 150’ X 35’ X 7’
CAPACITY	:	650 M Tons
RAMP SIZE	:	17΄ X 16’ 2 Units
RAMP STAND TO STAND DISTANCE	:	23’.6”
DECK LOADING SPACE	:	122΄ X 30’
DECK STRENGHT	:	4.21 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Manual System
CHAIN	:	Wire 200 Rft

M.T. ``LIGHT – 1``

M.T. ``LIGHT – 3``

M.T. ``LIGHT – 4``

M.T. ``LIGHT – 5``

M.T. ``LIGHT – 7``

M.T. ``LIGHT – 8``

M.T. ``LIGHT – 9``

M.T. ``LIGHT – 11``

M.T. ``LIGHT – 12``

M.T. ASH - SHAMS-1”

M.T. ASH - SHAMS-2”

BARGE QWAMI

BARGE QWAMI 3

BARGE ``TLN – 2``

BARGE ``TLN – 3``

BARGE ``TLN – 4``

BARGE ``TLN – 5``

BARGE ``TLN – 6``

BARGE ``TLN – 7``

BARGE M.V. SSBL - 3``

BARGE ``TLN – 11``

BARGE ``TLN – 19``

BARGE ``TLN – 20``

BARGE ``TLN – 23``

BARGE ``TLN – 24``

BARGE ``TLN – 25``

BARGE ``TLN – 26``

BARGE ``TLN – 28``

BARGE ``TLN – 29``

BARGE ``TLN – 30``

BARGE ``TLN – 31``

BARGE ``TLN – 32``

BARGE ``TLN – 33``

BARGE ``TLN – 34``

BARGE ``TLN – 35``

BARGE ``TLN – 36``

BARGE ``TLN – 41``

BARGE ``MKK - 2 ``

BARGE ``MKK - 3``

M.V.QAWMI -2

M. V.TLN - 12

M. V.TLN - 14

M. V.TLN - 16

M. V.TLN - 17

M. V.TLN - 18

M. V.TLN - 21

M. V.TLN - 22

M. V.TLN - 27

M.V. MKK-1

M.V.TLN-1 (AYSHA ADNAN)

M.V.TLN-37

M.V.TLN-38

GENARATOR BOAT ``SSBL - 2 ``

ANCHOR BOAT ``SSBL -1 ``

M.V.TLN -42

M.T. ``LIGHT – 1``

M.T. ``LIGHT – 3``

M.T. ``LIGHT – 4``

M.T. ``LIGHT – 5``

M.T. ``LIGHT – 7``

M.T. ``LIGHT – 8``

M.T. ``LIGHT – 9``

M.T. ``LIGHT – 11``

M.T. ``LIGHT – 12``

M.T. ASH - SHAMS-1”

M.T. ASH - SHAMS-2”

BARGE QWAMI

BARGE QWAMI 3

BARGE ``TLN – 2``

BARGE ``TLN – 3``

BARGE ``TLN – 4``

BARGE ``TLN – 5``

BARGE ``TLN – 6``

BARGE ``TLN – 7``

BARGE M.V. SSBL - 3``

BARGE ``TLN – 11``

BARGE ``TLN – 19``

BARGE ``TLN – 20``

BARGE ``TLN – 23``

BARGE ``TLN – 24``

BARGE NAME	:	BARGE “TLN –25”
YEAR OF BUILT	:	2008
REGISTRATION NO.	:	D -14063 Date: 05.11.2008
TYPE	:	Deck Loader Barge
SIZE	:	61.60 X 13.72 X 3.36 Meter = 202’ X 45’ X 11′
CAPACITY	:	2000 M Tons
RAMP SIZE	:	20.4΄ X 18’ , 2 UNITS
RAMP STAND TO STAND DISTANCE	:	24’
DECK LOADING SPACE	:	162΄ X 40’
DECK STRENGHT	:	13.79 Ton/m2
ANCHOR	:	2 Anchors
WINCH	:	Power Winch
CHAIN	:	2.5 Shackles = 225 Rft 2.5 Shackles = 225 Rft Each

NAME	:	BARGE “TLN –26”
YEAR OF BUILT	:	2014
REGISTRATION NO.	:	D-14096 Date: 05.02.2015
TYPE	:	Deck Loader Barge
SIZE	:	45.73 X 12.19 X 2.43 Meter = 150’ X 40’ X 8’
CAPACITY	:	800 M Tons
RAMP SIZE	:	18΄ X 16’, 2 UNITS
RAMP STAND TO STAND DISTANCE	:	23’
DECK LOADING SPACE	:	122΄ X 35’
DECK STRENGHT	:	13.79 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Power Winch
CHAIN	:	3 Shackles = 270 Rft

BARGE NAME	:	BARGE “TLN –28”
YEAR OF BUILT	:	2015
REGISTRATION NO.	:	D-01-1212 Date-28.03.2016
TYPE	:	Deck Loader Barge
SIZE	:	45.74 X 15.25 X 3.05 Meter =150’ X 50’ X 10’
CAPACITY	:	1250 M Tons
RAMP SIZE	:	18΄ X 16’ , 2 UNITS
RAMP STAND TO STAND DISTANCE	:	23’.
DECK LOADING SPACE	:	135’ X 44’
DECK STRENGHT	:	5.22 Ton/m2
ANCHOR	:	2 Anchor
WINCH	:	Power Winch
CHAIN	:	3 Shackles = 270 Rft

BARGE NAME	:	BARGE “TLN –29”
YEAR OF BUILT	:	2008
REGISTRATION NO.	:	D -14058 Date: 05.11.2008
TYPE	:	Deck Loader Barge
SIZE	:	51.80 X 10.45 X 2.45 Meter = 170’ X 34’ X 8’
CAPACITY	:	700 M Tons
RAMP SIZE	:	16’. 6” X 15’ (SINGLE RAMP)
RAMP STAND TO STAND DISTANCE	:	13’.6”
DECK LOADING SPACE	:	a. 50΄ X 30’ b. 40΄ X 27’ c. 30΄ X 12’
DECK STRENGHT	:	4.20 Ton/ m2
ANCHOR	:	2 Anchors
WINCH	:	Capstan
CHAIN	:	2 Shackles = 180 Rft

BARGE NAME	:	BARGE “TLN –30”
YEAR OF BUILT	:	2009
REGISTRATION NO.	:	D -14062 Date: 05.11.2008
TYPE	:	ANCHOR BOAT
SIZE	:	18.61 X 07.61 X 1.82 Meter =60’ X 25’ X 6’
CAPACITY	:	150 M Tons
RAMP SIZE	:	N/A
RAMP STAND TO STAND DISTANCE	:	N/A
DECK LOADING SPACE	:	37΄ X 20’
DECK STRENGHT	:	N/A
ENGINE	:
ANCHOR	:	1 Anchors
WINCH PERTICULARS	:	Capstan
CHAIN	:	1.5 Shackles = 135 Rft

BARGE NAME	:	BARGE “TLN –31”
YEAR OF BUILT	:	2008
REGISTRATION NO.	:	D -14057 Date: 05.11.2008
TYPE	:	Deck Loader Barge
SIZE	:	30.84 X 08.84 X 2.45 Meter =105’ X 30’ X 8’
CAPACITY	:	400 M Tons
RAMP SIZE	:	14.6΄ X 13’ 2 UNITS
RAMP STAND TO STAND DISTANCE	:	13’
DECK LOADING SPACE	:	75΄ X 24’
DECK STRENGHT	:	5.22 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Hand winch
CHAIN	:	Wire 200 Rft

BARGE NAME	:	BARGE “TLN –32”
YEAR OF BUILT	:	2015
REGISTRATION NO.	:	D-01-1211 Date-24.03.2016
TYPE	:	Deck Loader Barge
SIZE	:	41.48 X 10.68 X 2.44 Meter =136’ X 35’ X 8’
CAPACITY	:	630 M Tons
RAMP SIZE	:	18΄ X 22’ 2 UNITS
RAMP STAND TO STAND DISTANCE	:	22’.6”
DECK LOADING SPACE	:	120’ X 28’
DECK STRENGHT	:	5.22 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Hand Winch
CHAIN	:	3 Shackles = 270 Rft

BARGE NAME	:	BARGE “TLN –33”
YEAR OF BUILT	:	2017
REGISTRATION NO.	:	D-01-1507 Date-05.08.2018
TYPE	:	Deck Loader Barge
SIZE	:	54.88 X 15.25 X03.05 Meter =180’ X 50’ X 10’
CAPACITY	:	1500 M Tons
RAMP SIZE	:	18΄X 16’ 2 UNITS
RAMP STAND TO STAND DISTANCE	:	N/A
DECK LOADING SPACE	:	140’ X 44’
DECK STRENGHT	:	5.22 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Power Winch
CHAIN	:	3 Shackles = 270 Rft

BARGE NAME	:	BARGE “TLN –34”
YEAR OF BUILT	:	2016
REGISTRATION NO.	:	D-01-1299 Date-05.01.2017
TYPE	:	Deck Loader Barge
SIZE	:	41.48 X 10.68 X 2.44 Meter =136’ X 35’ X 8’
CAPACITY	:	630 M Tons
RAMP SIZE	:	18΄ X 16’ 2 UNITS
RAMP STAND TO STAND DISTANCE	:	23’
DECK LOADING SPACE	:	120’ X 28’
DECK STRENGHT	:	5.22 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Hand Winch
CHAIN	:	Wire = 250 Rft

BARGE NAME	:	BARGE “TLN –35”
YEAR OF BUILT	:	2016
REGISTRATION NO.	:	D-01-1383 Date-03.05.2017
TYPE	:	Deck Loader Barge
SIZE	:	45.74 X 15.25 X 3.05 Meter =150’ X 50’ X 10’
CAPACITY	:	1250 M Tons
RAMP SIZE	:	18΄ X 16’ 2 UNITS
RAMP STAND TO STAND DISTANCE	:	23’
DECK LOADING SPACE	:	135’ X 44’
DECK STRENGHT	:	5.22 Ton/m2
ANCHOR	:	1 Anchor
WINCH	:	Power Winch
CHAIN	:	3 Shackles = 270 Rft
